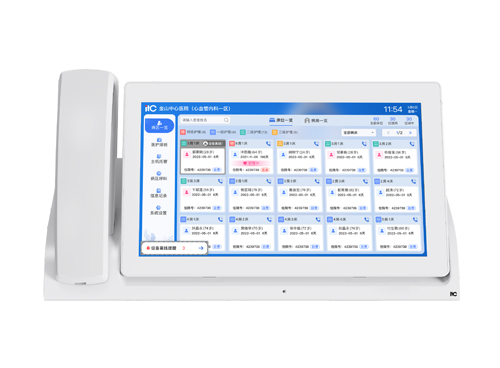

TH-3111YHT Medical host

The Details Related Solution Related Cases Related Video Download


Description:


The medical intercom host manages the patients in the ward or entrusted to the ward, checks the medical and nursing schedule information, hosts hosting and timing hosting, bed calls, information record inquiries, call requests for all bed extensions, access control, and toilet alarms and warning messages.


Features:


* This machine can normally receive calls and intercom in the state of no server .

* Display the basic information of all wards and the beds bound to the wards in the nursing unit in the form of ward information cards; click the information card to view the basic information of all beds and patients in the ward.

* The basic bed information of the nursing unit is displayed in the form of a bed information card, and the patient information or other remarks corresponding to all beds are displayed in real time; click the information card to view the patient details.

* Support to display the call status of all devices in the ward.

* Support real-time monitoring of the online status of the equipment, and there will be voice and text prompts when the extension or outdoor station is offline.

* Support displaying nurses' schedule information.

* Support querying incoming and outgoing call records.

* Support to entrust the equipment managed by this host to other hosts immediately or regularly, and transfer all call alarm events of this host to the preset host; you can exit the hosting state at any time.

* Support the opening and closing of the door lock of the ward, and confirm the identity through the intercom with the visitor to realize the access control management.

* Support full-duplex voice intercom, including hands-free and handle two intercom methods.

* Support answering incoming calls from ward equipment or other hosts and extensions.

* It supports clicking the extension bed that needs to be called on the bed list interface, calling the extension and making a call.

* Support to transfer call information to other hosts through background settings, and support time-segmented transfer.

* Support broadcasting information such as bed calls, toilet alarms, infusion alarms, nursing reinforcements, and entering nursing status.

* Support online monitoring function, which can monitor the online status of the extension in real time, which is convenient for debugging and maintenance.

* Support information list, you can view the information of patients in all wards in the ward in the interface, such as patient name, gender, doctor's order, bed number and other information.

* It adopts technologies such as voice adaptive echo cancellation AEC algorithm, noise suppression ANS algorithm, and APM algorithm for processing the far and near ends of the call sound source to achieve high-quality intercom, clear and loud voice, and bring a more comfortable and stable call experience.

* Support the installation of third-party APP applications.


Specification:


System

Android 7.1

Running memory

2GB

Storage memory

8GB

Audio sample rate

16K~48KHz

Audio output frequency

20Hz~20KHz

Audio distortion

0.1%

Audio SNR

>85dB

Audio stream

16Kb~192Kb

Audio capture rate

16K-48KHz

Speaker Impedance Power

4Ω 3W

Audio input interface

1*3.5mm stereo interface

Audio output interface

1*3.5mm stereo interface

Call handle

Configure a call handle

Speaker

4R 3W

Microphone

Input sensitivity: 10mV

Network

Network protocol: TCP/IP, UDP, IGMP, RTSP, RTMP, ONVIF

Network

RJ45 interface

Display screen

11.6 inches

Touch screen

Capacitive multi-touch

Resolution

1920*1080

I/O interface

One way relay normally open

Power supply

DC12V 2.5A

Power consumption

13W

Working temperature and humidity

Temperature: -20°C~50°C, Humidity: 10%~90% , no condensation

Installation method

desktop

Dimensions (L×W×H)

370*198.2*134.5mm

Weight

3.4kg
