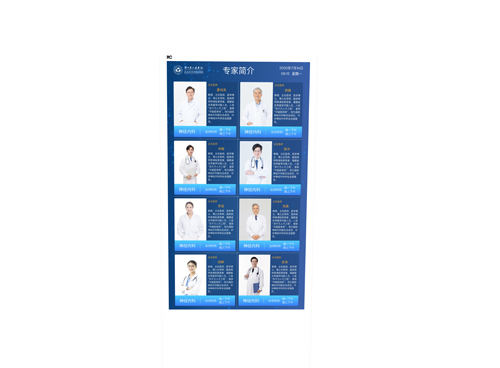

The vertical intelligent interactive flat panel is used in medical and nursing places, and is generally installed in the lobby or aisle area. It can display expert information, doctor scheduling information and message sending display, etc.
* Support the display of doctor scheduling and expert scheduling.
* Support information publishing (support video, documents, pictures, etc.), and can perform timing, program insertion, etc.
* Support background remote upgrade.
* Support background adjustment of device call voice size, and remote screenshot of display interface.
* Support setting any time period for timing switch.
* Support log viewing function.
* Support the replacement of display templates, which can be customized and modified according to the site environment.
|
Screen size |
55” |
|
|
Resolution |
1920*1080 |
|
|
Screen ratio |
16:9 |
|
|
Brightness |
350cd/㎡ |
|
|
Contrast |
1200:1 |
|
|
Viewing angle |
178° |
|
|
Refresh rate |
120HZ |
|
|
Touch |
Support infrared 20-point touch |
|
|
Backlight life |
50000Hrs |
|
|
Glass hardness |
Explosion-proof tempered glass, Mohs hardness scale 7 |
|
|
Processor |
Quad-core 1.8GHz main frequency |
|
|
Memory |
2GB DDR4 |
|
|
Hard disk |
16GB |
|
|
Operating system |
Android7.0 or above |
|
|
Built-in speaker |
5W*2(8Ω) |
|
|
Device interface |
USB×2; HDMI×1; 3.5mm×1; TF card slot×1; RS232×1 |
|
|
Network input (10/100M) |
RJ45×1 |
|
|
2.4G WIFI |
Support |
|
|
Input power |
100-240V |
|
|
Operating power consumption |
＜180W |
|
|
Standby power consumption |
＜0.5W |
|
|
Operating temperature |
-10～50℃ |
|
|
Working humidity |
10%～80%, relative humidity, no condensation |
|
|
Size (W×D×H) |
749.6*450*1915mm |
|
|
Wall hole |
Horizontal 400×Vertical 400 |
|
|
Net weight |
46.9kg |
|
