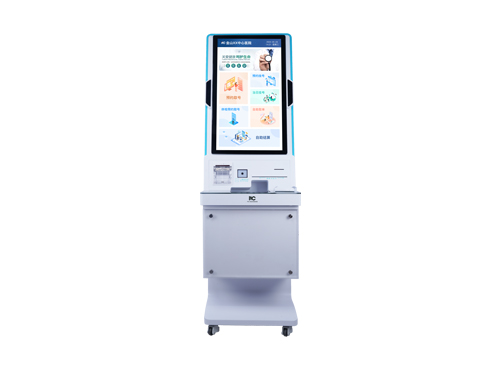

The self-service registration machine is a device used in hospitals to provide self-service functions. It addresses issues such as long queues and long waiting times for registration in large hospitals. By connecting with the hospital's HIS (Hospital Information System), it enables patients to complete services like self-registration, self-appointment, self-ticket collection, self-payment, and report printing and other services, helping hospitals optimize business workflows, improve daily operational efficiency enhance service quality, effectively reduce queue times, and improve the patient experience.
* Equipped with a 32-inch high-definition capacitive touchscreen, supports Windows operating system and multi-touch interactive operation.
* Supports recognition by placing a second-generation ID card in the card sensing area of the self-service machine, enabling self-registration, self-ticket collection, self-payment, and self-report printing by swiping the ID card.
* Supports self-ticket collection and self-payment by scanning the QR code on the diagnosis and treatment sticker or the electronic QR code.
* Supports self-service printing of inspection and examination reports, and printing on A4 and A5 paper.
* Automatically prints receipts after completing self-registration, ticket collection, and payment.
* Features a metal encrypted keyboard with 10 numeric keys and 6 function keys, offering protection against water, dust, impact, drill (intrusion-proof), tampering, leakage, eavesdropping, and replacement.
|
Operating system |
Windows operating system |
|
Processor |
Quad-core 3.20GHz |
|
Memory |
4GB |
|
Harddisk |
256GB SSD Hard Drive |
|
LCD size |
32 inches |
|
Display frame size |
940.896(W)×529.254(H) mm |
|
Display area |
697.68W×392.26Hmm |
|
Resolution |
1080×1920 |
|
Screen ratio |
9:16 |
|
Panel brightness |
300cd/m2 |
|
Viewing angle |
Full view |
|
Display color |
16.7M |
|
Contrast |
3000:1 |
|
Touch embedding method |
Integrated G+G capacitor |
|
Touch sensing |
10-point capacitive touch |
|
Writing method |
Finger, capacitive touch pen |
|
Touch response speed |
≤10ms |
|
Positioning accuracy |
±2mm |
|
Communication interface |
USB Type B Male |
|
Touch life times |
≥50 million times |
|
Id card reader |
It complies with the Ministry of Public Security's "GA450-2013 General Technical Requirements for Desktop Resident Identity Card Readers" and is compatible with the ISO-I4443 {TYPE-B} standard. Working frequency: 13.56MHZ (FC) Reading distance: 0-5CM |
|
2D scanning module |
Image size: 640×480 Pixel motion tolerance: 100mm/s (4in/s) Scanning angle: horizontal 38°, vertical 29°, tilt angle t45 °, depression angle T45° Lighting: White LED |
|
Laser printer |
Product type: black and white laser printer Standard memory: 128M Interface type: USB2.0 interface Operation panel: LCD display panel First page output time: ≤6.9S Black and white printing speed: ≥38ppm Maximum printing size: A4 Print resolution: ≥4800×600dpi |
|
Receipt printer |
Printing method: Line thermal printing Paper width: ≤80mm Resolution: ≥203dpi Printing speed: 150mm/s Maximum paper roll: 80 mm(outer diameter) |
|
Metal encryption keyboard |
Input keyboard: 10 numeric keys, 6 function keys Protection capability: Sensitive data can be stored for more than 5 years in case of power outage Safety features: waterproof, dustproof, riot-proof, anti-drilling (intrusion-proof), anti-disassembly, anti-leakage, anti-monitoring, anti-replacement Communication interface: standard RS-232 and standard USB2.0 Key life: more than 2 million times Algorithm: Support DES, TripleDES and 2048bit RSA Material: Stainless steel Security performance: keys, programs and sensitive data will self-destruct after unpacking Key travel: not less than 0.45mm Processing capabilities: PIN encryption, MAC calculation, data encryption/decryption Key surface characters: Etched concave or convex characters Compliant standards: ISO9564, IBM3624, ANSIX9.9, ANSIX9.19 |
|
Magnetic card reader |
Track: 1, 2, 3 track reading Card reading: 6.3~250 cm/s Error rate: card reading less than 0.5% Head life: about 1 million times |
|
USB interface |
USB×2 |
|
Communication interface |
RJ45×1, 100Mbs/1000Mbs adaptive |
|
Audio |
Audio OUT×1 , Mic IN×1 , built-in SPK×1 |
|
Maximum power consumption rate |
≤300W |
|
Standby power |
≤0.5W |
|
Input power |
AC 220V |
|
Workplace |
Indoor |
|
Operating temperature |
0℃ - 40℃ |
|
Operating humidity |
10% - 90% non-condensation |
|
Storage temperature |
-20℃ - 60℃ |
|
Storage humidity |
10% - 90% non-condensation |
|
Dimensions (length x width x height ) |
535×585×1742.98 mm |
|
Net weight |
160 kg |
|
Gross weight |
165 kg |
