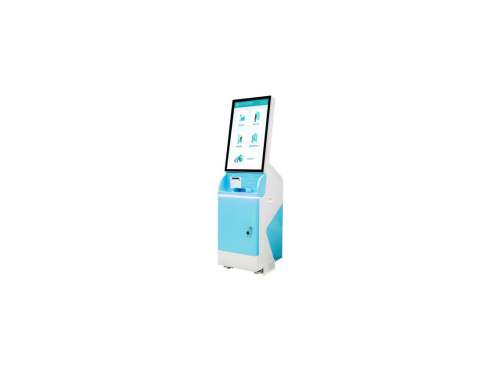

The Windows queuing ticket dispenser is placed in the hospital lobby, which is suitable for medical scenarios, and is used for patient registration, number collection, self-service payment, etc.
* Support electronic medical insurance certificate, medical card, medical insurance card, ID card, medical record number and other ways to register and take the number.
* Support user WeChat public account (small program) to make an appointment for registration, and to pick up the number at the self-service machine.
* Support self-service appointment registration, number pickup and cancellation of appointment.
* Support self-service settlement and payment for medical technology and medicine collection.
* Support same-day registration and appointment to pick up the number.
* Support self-service nucleic acid billing.
|
Screen size |
32” |
|
Resolution |
1920*1080 |
|
Response time |
8ms |
|
Screen ratio |
16:9 |
|
Brightness |
260cd/㎡ |
|
Contrast |
700:1 |
|
Viewing angle |
Horizontal 130°, Vertical 110° |
|
Refresh rate |
120HZ |
|
Touch |
Support infrared 20-point touch |
|
Glass hardness |
Explosion-proof tempered glass, Mohs hardness scale 7 |
|
CPU |
Quad core and quad thread, 3.20GHz |
|
Running memory |
4GB |
|
System memory |
240G SSD |
|
Operating system |
Windows 10 |
|
Built-in speaker |
5W*2 |
|
Device interface |
RS-232×6, USB port×8 |
|
Network input (10/100M) |
RJ45×1 |
|
2.4G WIFI |
support |
|
Social security card reader |
Reserved installation port |
|
Medical card reader |
Reserved installation port |
|
Receipt printing module |
Panel type RS-232 interface, thermal printing, automatic paper cutting (half cut), paper end alarm, paper near end alarm, paper jam alarm, black mark detection, printing width: 80mm, paper roll diameter: 80mm. |
|
Metal encrypted keyboard |
16-key metal (anti-riot, waterproof) encryption keyboard, passed the test of the bank card testing center, standard RS-232 interface, dedicated hardware encryption chip, and supports DES/3DES hardware encryption. |
|
Barcode scanner |
Support mobile phone or paper one-dimensional code, QR code recognition. |
|
Second generation ID card reader |
This device is a second-generation ID card verifier, which complies with the ISO 14443 Type B standard and uses wireless transmission to read out the personal information in the ID card. |
|
Input power |
100-240V |
|
Operating power consumption |
＜180W |
|
Standby power consumption |
＜0.5W |
|
Operating temperature |
-10～50℃ |
|
Working humidity |
10%～80%, relative humidity, no condensation |
|
Size (L×W×H) |
509×525×1795mm |
|
Net weight |
44kg |
