TH-3115TSU Visitation extension

The Details Related Solution Related Cases Related Video Download


Description:

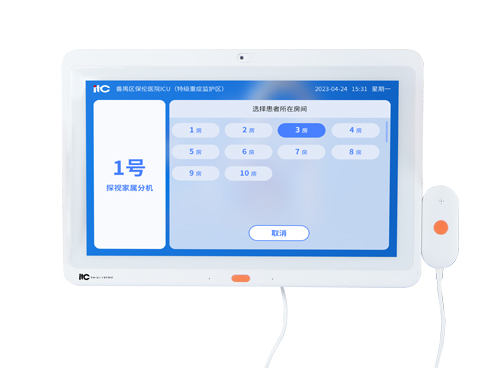

The visitation extension is installed in the visitation room and supports initiating visitation applications and entering the visitation screen to communicate visually with the patient.


Features:


* Equipped with a quad-core processor, providing powerful computing power and processing speed to ensure smooth user experience and efficient task processing.

* Precise multi-touch function allows users to operate and control by touching the screen, providing a more intuitive and convenient interaction method.

* Equipped with a 15.6-inch high-resolution display, presenting delicate images and clear text, providing a richer visual experience and a more comfortable reading environment.

* With great brightness performance, it can be clearly seen even in bright environments, enhancing the applicability and usability of the product.

* Support wired network connection, providing stable and high-speed network connection, suitable for scenarios that require large-traffic data transmission or require network stability.

* Equipped with a serial port 8P-2.0mm socket for convenient connection and communication.

* Equipped with a 5-megapixel camera, capable of shooting high-definition images and videos.

* Built-in dual microphones can realize two-channel recording and audio collection, improving audio quality.

* Support Chinese and English multi-language OSD operation interface, users can choose the appropriate language for operation according to their own needs.

* Support server offline reminder and terminal offline reminder;

* When family members initiate a visit, they only need to check the patient’s ward number, bed number and name. Once the identity verification is passed, the visit can begin;

* The remaining time of the visit is displayed on the visit screen, and the volume and brightness can be adjusted according to needs. Family members can apply to increase the visit time and support early ending of the visit;

* Support viewing local machine information, setting volume and brightness.


Specification:


Processor

Quad-core, main frequency 2.0GHZ

Memory

2GB

Hard disk

16GB

Operating system

Android 11

Touchscreen

10-point capacitive touch

LCD screen

15.6 inches

Resolution

1920×1080

Viewing angle

85/85/85/85°

Display mode

Always black

Contrast

800

Brightness

250cdm2

Dcreen ratio

16:9

WiFi

802.11b/g/n/ac,2.4G/5G

Bluetooth

Bluetooth 5.0

Ethernet

100Mbps/1000Mbps

Type-c

Only support USBOTG function

Network port

RJ45 Ethernet interface

Voice control port

6P-2.0mm socket (connect to external handheld microphone)

USB

USBHost2.0

Serial port

8P-2.0mm seat (TTL level)

Headphone holder

3.5mm stereo headphone output with microphone input

Video format

MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K video

Audio format

MP3/WMA/AACetc

Image Format

Jpeg/png

Wall hanging

100×100mm standard wall mounting VESA hole

Speaker

2×3W

Camera

Normal angle 5 million pixels

Built-in microphone

Standard dual microphones

Operating temperature range

0~40℃

Power supply

DC12V/2A+POE power supply

Machine rated power

24W

Size

399.39×28.9×263.54mm

Weight

1.53kg
