Description:

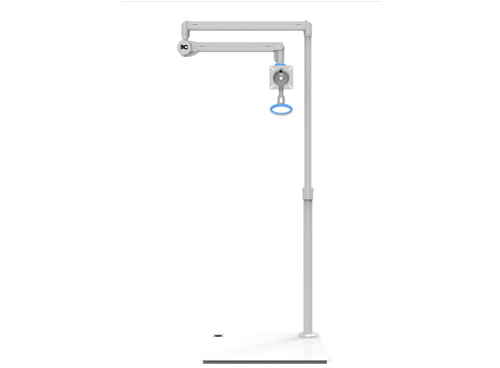

The hospital bed swing arm bracket is placed on the floor beside the hospital bed and is used to support and fix the bedside interactive display equipment to facilitate the adjustment and fixation according to the patient or doctor's requirements.

Features:

* Left and right rotation joint 1, left and right rotation angle 180°, strength specification 0.5~1KGF adjustable.

* Left and right rotation joint 2, left and right rotation angle 400°, strength specification 0.5~1KGF adjustable.

* Left and right rotation joint 3, left and right rotation angle 400°, strength specification 0.5~1KGF adjustable.

* Finished product load (monitor) specifications: 0.5~4KG; up and down lifting force specifications: 0.5~1.5KGF; lifting angle specifications: -5°~55° (up and down lifting range 387mm).

* Monitor tilt angle specification: -40°~50°; force specification 0.5~2KGF.

* Support VESA international standard 75*75mm/100*100mm hole installation.

* The height of the column can be adjusted in 5 steps, with an adjustment range of 1400~1600mm.

* Height 1400-1600mm (adjustable in five levels); base 568*460mm; primary arm length: 614mm; secondary arm length 480mm.
