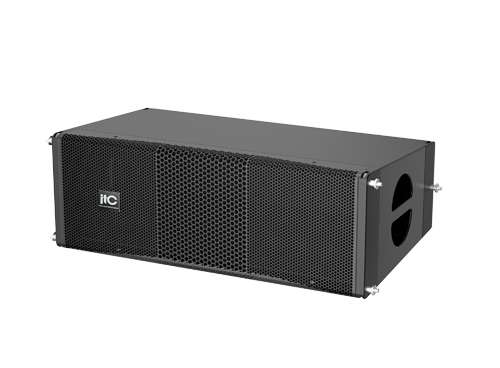

KS-405 Linear Array Speaker

The Details Related Solution Related Cases Related Video Download


Description:


Suitable for small and medium-sized conference rooms, banquet halls, command centers, and multi-functional halls.


Features:


* The box is made of nylon fiber reinforced material, mold pressed, light weight and high sound pressure design .

* The hard and thick rigid mesh is stamped in one piece and covered with high-sound-transmittance mesh cotton, which effectively prevents dust or liquid from invading and affecting the sound quality, protects the speaker, and significantly increases the service life of the speaker .

* Equipped with 4 5-inch ferrite mid-bass speakers and 2 44mm neodymium compression tweeters, the treble is bright and rich, the low frequency is rich, and the vocals are clear and distinct .

* The crossover adopts a single drive mode, and the tweeter uses ultra-short waveguide technology to achieve excellent and good directivity, uniform sound field coverage, high sound pressure level output, and fast transient response, achieving performance-level high sound pressure and clarity.

* The product is ultra-light and thin, with aluminum alloy pendants, and can be assembled by one person .


Specifications:


Rated power

400W

Peak power

1600W

Nominal impedance

16Ω

Frequency range (-10dB)

100Hz~17KHz

Sensitivity (±3dB)

98dB(1M/1W)

Maximum sound pressure level (rated/peak)

112dB/118dB

Bass

5" woofer x 4

Treble

44mm" neodymium compression tweeter × 2

Coverage angle

(H) 100°(V) 0-10° adjustable

Dimensions (HxWxD)

296 × 448 × 156 mm

Weight

13.8Kg
