Suitable for various medium and large theaters, lecture halls , multi-function halls, banquet halls, gymnasiums , auditoriums and other indoor sound reinforcement places .

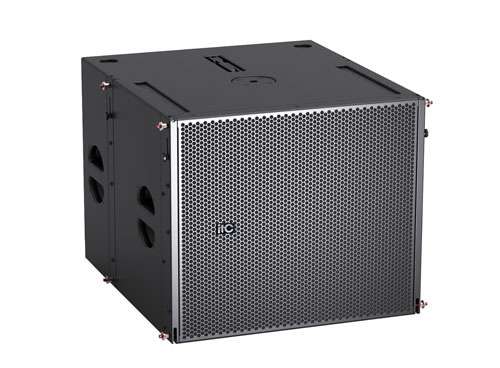

* This product is an 18-inch linear array low-frequency speaker, which is combined with a full-range speaker to form a linear array speaker system .
* Using an 18" (100mm voice coil) low-frequency driver, the low-frequency limit can be extended to 32Hz .
* The cabinet structure is carefully optimized to give the speaker a good transient response. The improved cabinet structure reduces the wind noise and airflow in the tube, strengthens the cabinet structure, reduces the cabinet bass resonance, and makes the low frequency fuller and clean .
* The box structure is made of high-density birch wood, and the surface of the box is treated with high-strength paint to prevent collision and increase service life .
* The hanging device adopts a new mold design, which is convenient and quick to install and can efficiently complete on-site installation and stacking .
Rated power |
700W |
Peak power |
2800W |
Nominal impedance |
8Ω |
Frequency range (-10dB) |
32Hz-250Hz |
Sensitivity (±3dB) |
102dB (1M/1W) |
Maximum sound pressure level (rated/peak) |
130dB/136dB |
Speaker unit |
18" (100mm voice coil) × 1 |
Size (H×W×D) |
543×700×700mm |
Net weight |
54 kg |
