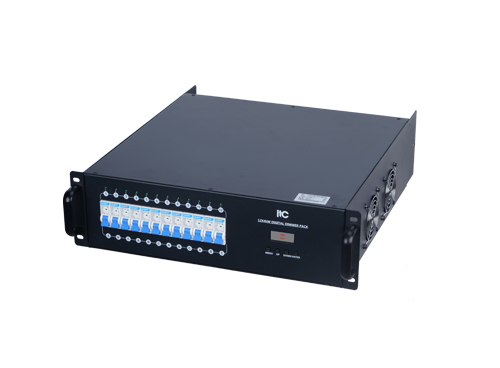

1．SCR chip, the core component of the silicon box, adopts imported materials with stable and reliable performance;
2．Good heat dissipation device and forced air cooling device are combined with intelligent environmental protection control system;
3．Efficient anti-interference choke coil has strong anti-interference ability, small noise, and current rising time of 220us-450us;
4．Start loop setting, and preheating value setting;
5．The dimming curve can be set to linear or on/off state, the value of which is 50%. Under the on/off state, when the input brightness value is greater than or equal to 50%, the corresponding output loop is full, otherwise there is no output.
|
Input voltage |
TN-S system AC 380V±10%, frequency 50Hz±5% |
|
No-load power |
10W |
|
Power factor |
PF≥0.98 |
|
Rated power |
12 channels×4kW. Maximum output power of each circuit can reach 4kW |
|
Shell material |
Cold-rolled plate |
|
Power interface |
12 power output interfaces |
|
Signal interface |
1 DMX512 input interface, 1 DMX512 output interface |
|
Working environment temperature |
-10℃～45℃ |
|
Protection class |
IP20 |
|
Dimensions |
International standard 3U |
|
Product dimensions (L×W×H) |
523×487×139mm |
|
Product net weight |
14.6kg |
