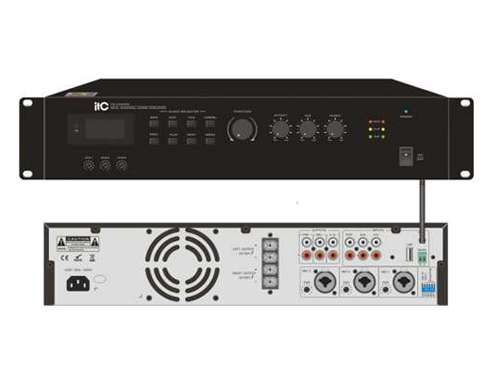

2 Channel Multimedia Mixer Amplifier For Mosque:T-2240ME T-2500ME

The Details Related Solution Related Cases Related Video Download

itc T-2240ME T-2500ME were designed specifically for mosques, making it the perfect choice for every small and medium-sized mosque sound system. 2x240W and 2x500W amplifiers, a mixer built-in DSP sound effect processing. With functions such as delay, reverberation, echo, anti-howling (level 7), tone shift (level 10), and vocal excitation that best support your every requirement.


Multi-purpose Mosque PA systems which might be used for background music between intervals & congregations moreover as speech ideal for ceremonies & prayers.


null


The Function of Multimedia Mosque Amplifier


* The audio source has multiple inputs such as optical fiber, coaxial, USB, Bluetooth, line, microphone, etc.;

* Built-in DSP sound effect processing. With functions such as delay, reverberation, echo, anti-howling (level 7), tone shift (level 10), and vocal excitation;

* The control function is realized through infrared remote control, coded switches, and buttons;

* Panel LCD screen intuitively displays of various functions and working status;

* Provide 3-channel RCA line inputs, 3-channel balanced microphone with phantom power inputs;

* With DSP processor, multiple preset scene modes;

* The volume of each microphone is independently adjustable, the effect is adjustable, and the music volume is independently

adjustable.Treble, Alto, Bass adjustment;

* Built-in RS485 communication central integrated control function.

* Support USB playback, support MP3, WAV, APE, FLAC and other lossless high-fidelity music formats;

* With the soft start protection function of switch , with voltage limit, short circuit, overload, and overheat protection.


null


null


It is suitable for supermarkets, meeting rooms, training rooms, mosques and other places.


null


Specification:


Model

T-2240ME

T-2500ME

Rated output power

2x240W@4R

2x240W@100V

2x500W@4R

2x500W@100V

Input sensitivity and impedance

MIC1, 2, 3,: ±2.5mV/600Ω- ±200mV/10KΩ, with phantom balanced input)

DVD: 350mV/10KΩ, (unbalanced input)

VCD: 350mV/10KΩ, (unbalanced input)

BMG: 350mV/10KΩ, (unbalanced input)

Optical fiber, coaxial:1000mV

Output

SW (150Hz): 1V/470Ω

PRE: 1V±50mv/470Ω

REC: 200mV±20mv/470Ω

Microphone tone

Bass: ±10dB at 100Hz

Alto: ±10dB at 2KHz

Treble: ±10dB at 10KHz

Music tone

Bass: ±10dB at 100Hz

Alto: ±10dB at 2KHz

Treble: ±10dB at 10KHz

THD

Power amplifier rated output power 1Kz (under 1/8A power condition) ≤0.1%

USB playback

Support MP3, WAV, APE, FLAC

Communication

RS485 communication central control integrated control function

Frequency response

DVD, VCD, BGM: 20HZ (±3dB)-20KHZ (±3dB)

Mic: 50HZ (±3dB)-16KHZ (±3dB)

SNR

Mic: ≥85dB,

Music: ≥85dB

Protection

Overload, short circuit, overvoltage and undervoltage protection.

Indicator light

Power supply, output level

Supply voltage

~220V 50Hz

Power loss

650W

1300W

Weight

6.6Kg

7.68Kg

Size(LxWxH)

430x335x88mm

430x395x88mm
