These professional amplifier system application for large music concern stage, make sure coverage and quality.
Equipment list
Number |
Model |
Specifications |
Quantity |
1 |
TS-331 |
Wired Handheld Microphone |
1 |
2 |
TS-338 |
Conference Desktop Mic |
1 |
3 |
TS-338 |
UHF segment LCD liquid crystal display FM true diversity Wireless Mic, two handheld mics |
1 |
4 |
T-522A |
Signal distributor |
1 |
5 |
T-522B |
Logarithmic directional antennas |
1 |
6 |
TS-16PFX-4 |
16 Channel Mixer with 4 Group Busses |
1 |
7 |
TS-205 |
8 Channel Stereo Signal Distributor |
1 |
8 | TS-P880 |
8 Input and 8 Output Digital Audio Matrix Processor |
1 |
9 |
TS-234 |
Stereo Feedback Supressor |
1 |
10 |
TS-500PI |
Professional Stereo Amplifier, 2 channel,2×500W@8Ω |
2 |
11 |
TS-700PI |
Professional Stereo Amplifier, 2 channel,2×700W@8Ω |
1 |
12 |
TS-812F |
High-End Stage Loudspeaker, 12'' , 400W @8Ω |
2 |
13 |
TS-610 |
PHigh-End Entertainment Loudspeaker, 10'', 300W @8Ω |
2 |
14 |
TS-615S |
Subwoofer, 15'', 500W @8Ω |
2 |
15 |
LA-1800P |
Active Line Array Loudspeaker, Subwoofer, 500W@4Ω, 18'' x 1 |
2 |
16 |
LA-2650P |
Active Line Array Loudspeaker, two way active line array loudspeaker,300W@8Ω(AES),8''x 2 |
8 |
17 |
LA-P03 |
Mounting Bracket for line array speaker LA-1800P/LA-2800P |
2 |
18 |
LA-P02 |
Gourd rack |
1 |
System Diagram
System Features
1. itc Audio Matrix Processor use standard TCP/IP network control protocols, which can input and output 8 channel balanced mic/line audio signal at same time to realize remote network audio transmission and audio sharing at large sound system place, especially large concert stage.
2. Active line array speaker(LA-2800P&LA-1800P) as the main speaker, TS-610, TS-812F ,T615S loudspeaker as assistant speaker, they will broadcast music together to make sure sounds can be covered to whole concert venue in excellent quality.
3. Built in Audio Mixer (TS-16PFX-4 ), Audio Feedback Suppressor(TS-234) and audio processor(TS-P880) to make sure the music in excellent quality, let audience to enjoy the ultimate sound experience!
More details pls visit: #campusconferenceamplifier
LA-2650P/ LA-1200P Active Line Array Loudspeaker
LA-2800P/ LA-1800P Active Line Array loudspeaker
TS-9100TC Network Central Controller
TS-206M Ceiling Speaker

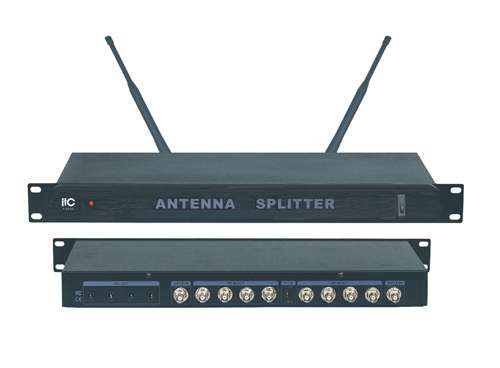

T-522A Microphone Antenna Distributor

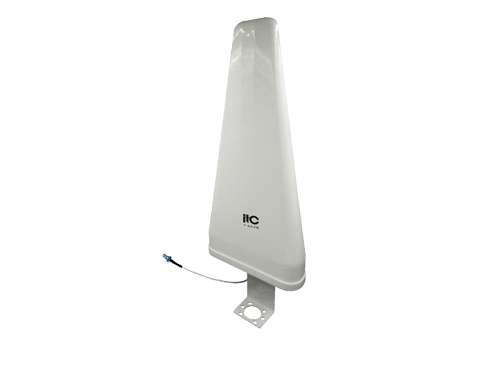

T-522B Logarithmic Directional Microphone Antennas

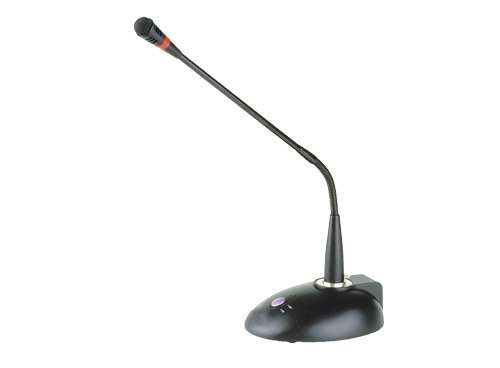

TS-338 Desktop Mic (Balance Input + Phantom Power)
