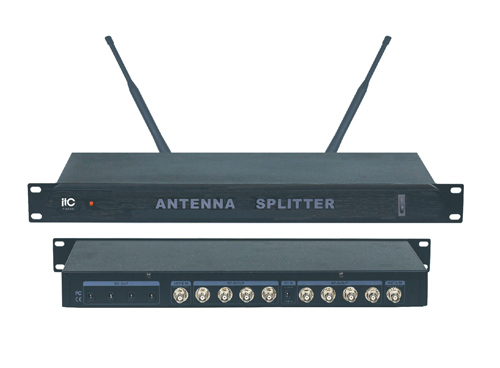

* Provide a multi-channel system with 4 T-521UH series automatic signal selection receivers, sharing a pair of antennas and a power supply.
* Simplify the antenna assembly project, improve the receiving distance and efficiency.
* The two antenna signals are received by the antenna input of the splitter.
* The two cascaded signals are output to the antenna input of the next splitter.
* The system composed of wide-band log-periodic dipole array antenna or dual-polarized antenna or omnidirectional whip antenna and amplifier and splitter has the function of picking up and amplifying the signal and then outputting and distributing.
* Wireless receivers covering all frequencies of 470-960M in the UHF segment.
|
Model |
T-522A |
|
Frequency band |
470-960MHz |
|
I/O gain |
+1.0dB (band center) |
|
I/O impedance |
50Ω |
|
LINK output gain |
About 5 dBm, it varies in each frequency band |
|
RF output attenuation |
About -3dBm, it varies in each frequency band |
|
1 splitter |
4 receivers supporting 2 antennas |
|
2 splitters |
8 receivers supporting 2 antennas |
|
5 splitters |
20 receivers supporting 2 antennas |
|
Bandwidth |
320MHz |
|
Power supply |
12V DC 3000mA |
|
Distributed power output |
12V DC, total load of 4 receivers can not exceed 3A |
|
Antenna BNC input interface |
BNC 5V DC 100mA |
|
Net weight |
1.82kg |
|
Gross weight |
3.03kg (including adapter×1, coaxial cable×10, power distribution line×4) |
|
Product size |
420×44×180.8mm (W×H×D) (with panel size) |
|
Inner package size |
516×77×407mm (W×H×D) |
|
Outer package size |
530×420×430mm (W×H×D) (5 units in 1 outer package) |

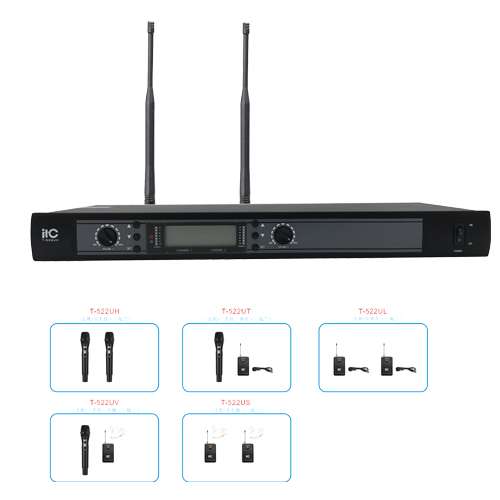

T-522UH/ T-522UT/ T-522UL/ T-522UV/ T-522US UHF Wireless Microphone

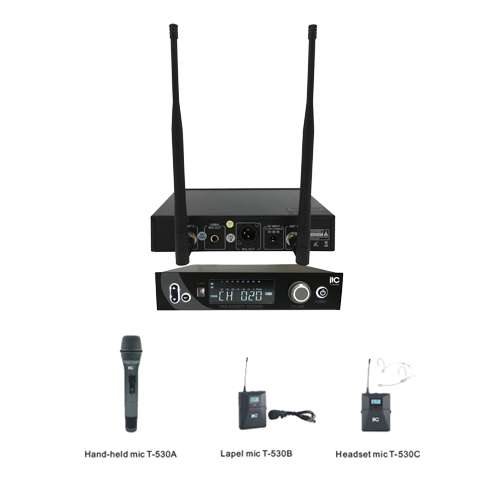

T-530A/ T-530B/ T-530C UHF Dual-Channel Wireless Microphone
T-531A/ T-531B/ T-531C Wireless Microphone ( frequency-adjustable single channel wireless microphone with UHF band LCD display-non true diversity)

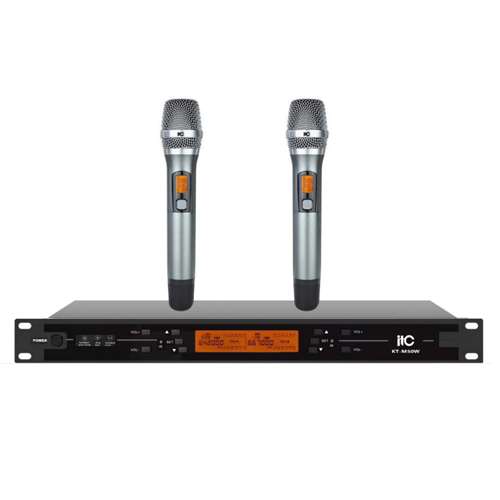

KT-M50W Wireless Microphone
