Description:

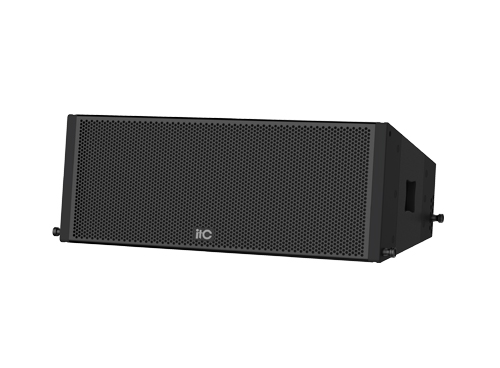

It is specially designed for conference halls, banquet halls, multi-functional lecture halls and other sound reinforcement scenes. It takes into account both language clarity and music expression. It is suitable for a variety of application scenes such as speeches and performances. It is the core component for building a high-precision and high-reliability line array sound reinforcement system .

Features:

* The multi-layer high-quality birch is processed by CNC precision, and multiple reinforcing ribs are set inside to significantly reduce the resonance of the box during high-power output and ensure acoustic stability. The surface polyurea spray paint process has both wear resistance and environmental adaptability, and is suitable for long-term fixed installation and complex working conditions .

* The one-piece stamped metal mesh cover combined with high-sound-transmittance acoustic mesh cotton provides double protection to effectively block the intrusion of dust and liquids, while minimizing sound wave attenuation to ensure pure and lossless sound quality .

* Equipped with two 6.5-inch ferrite mid-bass units and one 1.73-inch titanium film compression tweeter, it achieves accurate coverage of the full frequency band (80Hz-20kHz). The mid-bass unit uses a high-performance ferrite magnetic circuit to ensure dynamic response and low-frequency density; the titanium film tweeter has delicate high-frequency extension, excellent transient performance, and a transparent and balanced overall tone .

* Through precise waveguide design and acoustic optimization, the sound wave energy of each frequency band is evenly diffused to eliminate interference between frequencies. The horizontal coverage angle is 100° (H) and the vertical coverage angle is 10° (V), ensuring that the sound pressure level and frequency response are highly consistent in a wide area, with excellent language clarity and music details .

* The ultra- low frequency lower limit of 80Hz extends to the high frequency of 20kHz, covering the full-band sound requirements. The low frequency is solid and full, the mid-frequency human voice is accurately restored, and the high frequency is bright and not harsh. It is suitable for multiple scenarios such as music performances and conference sound reinforcement .

* The dedicated hanging component supports 0°~10° vertical angle adjustment, which is suitable for flexible stacking or hanging of line array systems, simplifies the on-site installation process, and improves the efficiency of project deployment .

* High-reliability professional plugs and sockets are used to ensure stable signal transmission and strong anti-interference ability, suitable for long-distance cable layout and complex electromagnetic environment.

* Professional aviation sockets and plugs with good electrical properties.

Specifications:
