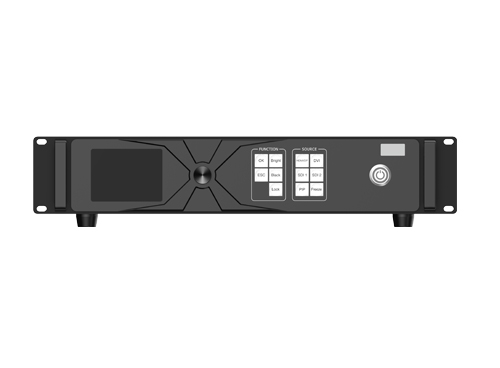

A professional LED display control device that integrates a video splicer, video processor and LED controller. It has powerful video signal receiving capabilities, ultra-high-definition image processing and sending capabilities, and can be perfectly applied to high-end rental displays and small-pitch LED displays.
* The maximum supported custom output is 8.3MP, with a maximum width of 8192 dots or a maximum height of 4096 dots.
* With 16-channel Gigabit network port output;
* With a maximum input resolution of 3840×2160@60Hz;
* Capable of cropping, scaling and splicing video signals;
* Equipped with 3-screen display, the position and size can be freely adjusted;
* With brightness and color temperature adjustment;
* With low brightness and high gray;
* Support HDR10 standard HDR display;
|
Input Interface |
|
|
HDMI2.0×1 |
Maximum supported input resolution 4096×2160@60Hz, supports custom resolution, supports audio input |
|
DP1.2×1 |
Maximum supported input resolution 4096×2160@60Hz, supports custom resolution, supports audio input |
|
DVI×4 |
The maximum supported input resolution is 1920×1080@60Hz, and custom resolution is supported |
|
3G-SDI×2 |
Support SMPTE-424M, SMPTE-372M, SMPTE-292M standard video source input |
|
Output Interface |
|
|
Port×16 |
RJ45, 16-channel Gigabit Ethernet port output |
|
HDMI2.0×1 |
HDMI2.0 loop-through interface |
|
Control Interface |
|
|
LAN×1 |
RJ45, can be connected to LAN |
|
USB IN×1 |
Input interface, connect to computer for device control |
|
USB OUT × 1 |
Output interface for cascading between devices |
|
Genlock × 1 |
Synchronous signal to ensure the large screen display is synchronized with the external Genlock source |
|
Genlock loop×1 |
Synchronous signal loop output |
|
RS232 |
RJ11 interface, used to connect to the central control |
|
Working power supply |
100-240VAC |
|
Device size |
482.6mm*372.6mm*88.0mm (length×width×height) |
|
Equipment net weight |
9.0Kg |
|
Rated power |
70W |
