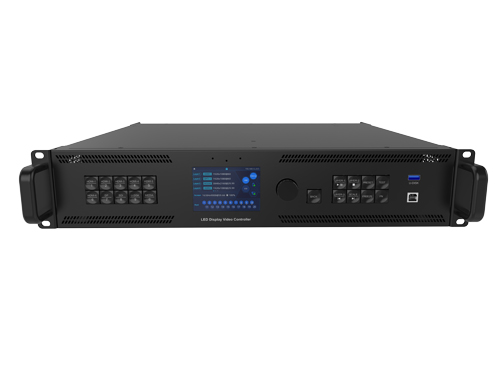

A two-in-one control server that integrates video processing and video control functions. It has high-definition image processing capabilities, powerful video processing and transmission capabilities, can adapt to complex operating environments, and is widely used in mid-to-high-end rental, stage control and engineering small-pitch LED display fields.
* Maximum loading capacity: 13MP, maximum width: 16384 pixels, maximum height: 8192 pixels;
* With 3.5mm independent audio input and output;
* Ability to save and call 256 custom scenes;
* Equipped with 12 independent windows, the window size and position can be adjusted individually;
* It has personalized screen zoom modes, including point-to-point mode, full-screen zoom, and custom zoom;
* With one-click full-screen zoom;
* Ability to intercept input source arbitrarily;
* With point-by-point brightness and chromaticity correction;
* With USB playback, plug and play, smart and convenient;
* Support 3D function to achieve 3D display effect;
|
Input Interface |
|
|
HDMI2.0×2 |
The maximum supported input resolution is 3840×2160@60Hz, supports custom resolution, supports HDCP1.4 and HDCP2.2, and supports accompanying audio input |
|
DP1.2×1 |
The maximum supported input resolution is 3840×2160@60Hz, supports custom resolution, supports HDCP1.4 and HDCP2.2, and supports accompanying audio input |
|
HDMI1.3×4 |
Maximum supported input resolution 1920×1080@60Hz, supports custom resolution, supports HDCP1.4, supports accompanying audio input |
|
12G-SDI×1 |
Supports ST-2082 (12G), ST-2081 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video input |
|
AUDIO×1 |
Support 3.5mm standard audio input |
|
Output Interface |
|
|
Port×20 |
RJ45, 20-channel Gigabit Ethernet output |
|
AUDIO×1 |
Support 3.5mm standard audio output |
|
12G-SDI×1 |
3G-SDI loop output interface |
|
HDMI 1.3×1 |
When used for output screen preview, the output resolution is fixed at 1920×1080@60Hz |
|
OPT×4 (optional) |
4-channel 10G optical fiber interface, OPT1-2 optical port adaptive input or output, OPT 3~4: send network port 1~10, network port 11~20 data respectively |
|
3D interface × 1 |
Cooperate with 3D transmitter and matching 3D glasses to achieve 3D display effect |
|
Control Interface |
|
|
ETHERNET×2 |
Connect to the host computer, device cascade input or output |
|
USB2.0×1 |
Upgrading device firmware via USB flash drive |
|
RS232×1 |
3pin central control interface, connect to central control device |
|
GENLOCK IN-LOOP×1 |
External sync signal source |
|
LIGHT SENSOR×1 |
Connect the light probe to realize automatic adjustment of screen brightness |
|
USB (square port) × 1 |
Connect to control computer and debug equipment |
|
USB 3.0×1 |
Support USB playback |
|
Working power supply |
AC100V~240V, 50/60Hz |
|
Device size |
482.6mm×409.0mm×94.6mm (length×width×height) |
|
Equipment net weight |
7Kg |
|
Rated power |
82W |
