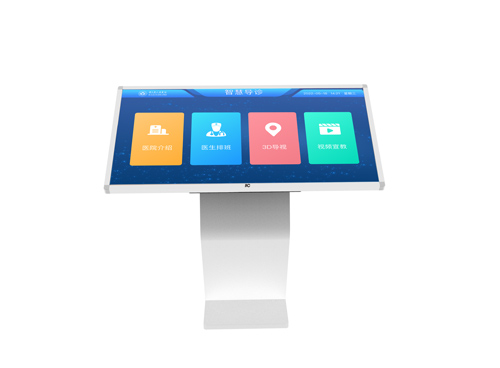

Horizontal all-in-one machines are used in medical places and are generally installed in halls or corridors . They can be used for inquiry, guidance, education, etc.
* Supports display of hospital information and related education.
* Supports querying the scheduling of expert doctors in each department.
* Support 3D maps for route navigation.
* Support background remote upgrade.
* Supports scheduled power on/off and restart of devices, software restart, remote volume adjustment, and software upgrades.
* Support log viewing function.
* Supports advertising management function.
* Supports replacement of display templates, and can customize template styles according to the on-site environment.
|
Screen size |
43 inches |
|
Resolution |
1920 * 1080 |
|
Screen ratio |
16:9 |
|
Display size |
943 × 531 mm |
|
Brightness |
300cd/㎡ |
|
Contrast |
1200 :1 |
|
Viewing angle |
178° |
|
Refresh rate |
120HZ |
|
Touch |
20-point infrared touch |
|
Backlight life |
50000Hrs |
|
Glass hardness |
Explosion-proof tempered glass, Mohs 7 hardness |
|
Processor |
Quad-core, main frequency 2.0GHz |
|
Running memory |
2 GB DDR4 |
|
System memory |
32 GB |
|
Operating system |
Android 11 |
|
Built-in speaker |
5 W × 2(8 Ω) |
|
Device interface |
USB×2; HDMI×1; 3.5mm×1; TF card slot×1; RS232×1 |
|
Network input (10/100M) |
RJ45×1 |
|
2.4G WIFI |
support |
|
Power supply mode |
100-240V |
|
Operating power consumption |
＜ 180W |
|
Standby power consumption |
＜0.5W |
|
Operating temperature |
0～40°C |
|
Operating humidity |
20%～85%RH, no condensation |
|
Display screen size ( W× D ×H ) |
1015.1 × 64.2 × 603.5 mm |
|
K-type base dimensions ( W× D ×H ) |
440 × 470 × 1023 |
|
Base hole |
372 × 350 |
|
Net weight |
33.5kg |
Please leave a message if necessary, we will contact you as soon as possible!
