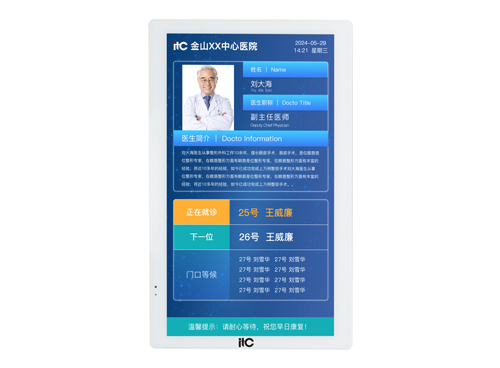

The secondary triage screen is placed at the entrance of the clinic or at the examination window. It is suitable for medical scenarios. It displays the doctor information and patient queue information and supports number calling playback.
* Supports displaying the information of the doctor currently sitting in the clinic, including the doctor's photo, name, title, and brief introduction.
* Supports display of patient information, including current patient information, next patient information, and patient waiting in line information.
* It supports displaying promotional slogans at the bottom of the screen, and the slogan content can be modified through the background software.
* Support background remote upgrade.
* Supports privacy protection of patient names, and displays patient names with an asterisk (*), such as Zhang*, Huang*yi.
* It supports call number prompts. Patients whose numbers are called will receive special prompts, and voice broadcasts are supported.
* The background supports adjusting the volume of the device's calling voice and taking remote screenshots of the display interface.
* Support setting any time period for scheduled power on and off.
* Support log viewing function.
* Supports replacement of display templates, and can customize template styles according to the on-site environment.
|
Screen size |
15.6 inches |
|
Resolution |
1920×1080 |
|
Screen ratio |
16:9 |
|
Display size |
344.16 (H) × 193.59 (V) |
|
Brightness |
250 cd/ ㎡ |
|
Contrast |
1 2 00:1 |
|
Viewing angle |
178° |
|
Backlight life |
50000Hrs |
|
Glass hardness |
Explosion-proof tempered glass, Mohs 7 hardness |
|
Processor |
Quad-core, main frequency 2.0GHz |
|
Running memory |
2 GB DDR4 |
|
System memory |
32 GB |
|
Operating system |
Android 11 |
|
Built-in speaker |
3W *2( 8Ω) |
|
Device interface |
USB2.0×2; HDMI×1; 3.5mm×1; TF card slot×1 |
|
Network input (10/100M) |
RJ45×1 |
|
2.4G WIFI |
support |
|
Power supply mode |
100-240V |
|
Operating power consumption |
≤ 50 W |
|
Standby power consumption |
≤0.5W |
|
Operating temperature |
0～40°C |
|
Operating humidity |
20%～85%RH, no condensation |
|
Overall dimensions ( W×D×H ) |
236.3 × 25.8 × 376.3mm |
|
Operating temperature |
0～40°C |
|
Wall-mounted holes |
130 × 260mm |
|
Net weight |
4.6kg |
