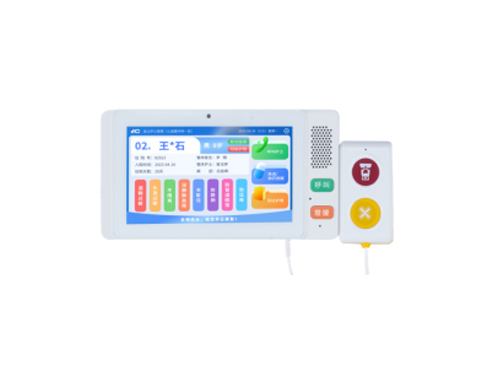

The smart medical intercom system bed extension screen is suitable for displaying patient basic information, label cards, patient details, medical staff on duty, doctor's order information, cost details, physical examination status, vital signs, calls for reinforcement, etc.
* The machine can receive calls and intercoms normally when the server is offline .
* After the support call is over, the patient enters the nursing state.
* Supports displaying basic patient information , on-duty nurses, medical order information, fee details, inspections, and vital signs bound to the bed in this nursing unit .
* Support display the data synchronized by the HIS system, the names of responsible doctors and responsible nurses, and can display the patient's name, gender, age, hospitalization number, admission time, admission diagnosis, care level, care label, dietary information, allergy information, bed management doctor, and management bed nurse and other related information.
* Supports external devices, supports docking bathroom emergency buttons and alarm door lights.
|
Screen size |
7 inches |
|
Resolution |
1024 × 600 |
|
Touchscreen |
capacitive touch |
|
Operating system |
Android 10 |
|
Processor |
Quad core 1.6GHz |
|
Running memory |
2GB |
|
Storage memory |
8GB |
|
Camera |
2MP |
|
MIC sensitivity |
38dB |
|
Audio stream |
16kb~192kb |
|
Audio format |
MP3, WAV |
|
Device buttons |
call for reinforcements |
|
Handle buttons |
call, cancel |
|
Power jack |
DC12V power input |
|
Network Interface |
RJ45 Ethernet interface (standard POE function) |
|
External interface |
12V power supply, 485 interface, Type C debugging port, microSD card slot |
|
Speaker |
8Ω×2W |
|
Power consumption |
≤5W |
|
Working current |
800mA |
|
Operating temperature |
-10℃~+60℃ |
|
Working humidity |
10%~90% |
|
Dimension（W×D×H） |
225×26×120mm |
|
Weight |
0.75kg |
