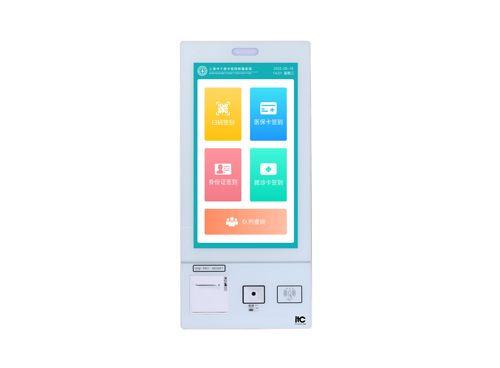

The registration machine is placed next to the nurse's station or in the waiting area, and is suitable for medical scenarios. After registration, patients go to the nurse's station of the corresponding department for self-service sign-in and triage.
* Support patients to check the progress of the inspection report through ID card, medical card, medical insurance certificate, medical insurance card swiping card (magnetic stripe/induction and other methods), scanning code, or manually entering patient information.
* Support patients to query queue information
* Support background remote upgrade.
* Support setting any time period for timing switch.
* Support log viewing function.
* Support volume adjustment.
|
Screen size |
21.5” |
|
|
Resolution |
1920*1080 |
|
|
Screen ratio |
16:9 |
|
|
Brightness |
250cd/㎡ |
|
|
Contrast |
1200:1 |
|
|
Viewing angle |
178° |
|
|
Refresh rate |
120HZ |
|
|
Touch |
Support infrared 20-point touch |
|
|
Backlight life |
50000Hrs |
|
|
Glass hardness |
Explosion-proof tempered glass, Mohs hardness scale 7 |
|
|
Processor |
Quad-core 1.8GHz main frequency |
|
|
Memory |
2GB DDR4 |
|
|
Hard disk |
16GB |
|
|
Operating system |
Android7.0 or above |
|
|
Credit card |
IC induction, support M1 card, 8-bit/10-bit/18-bit, etc. |
|
|
|
Thermal printing, the default paper size is 58mm |
|
|
Barcode scanner |
1D/2D scanning module |
|
|
Built-in speaker |
5W*2(8Ω) |
|
|
Device interface |
USB×2; HDMI×1; 3.5mm×1; TF card slot×1; RS232×1 |
|
|
Network input (10/100M) |
RJ45×1 |
|
|
2.4G WIFI |
Support |
|
|
Input power |
100V～240V |
|
|
Operating power consumption |
＜180W |
|
|
Standby power consumption |
＜0.5W |
|
|
Operating temperature |
-10℃～50℃ |
|
|
Working humidity |
10%～80%, relative humidity, no condensation |
|
|
Machine size (L×H×D) |
339.4×744.4×59.5mm |
|
|
Wall hole |
Horizontal 300×Vertical 300 |
|
|
Net weight |
11.55kg |
|
