TH-3155ST Operating room status screen

The Details Related Solution Related Cases Related Video Download


Description:

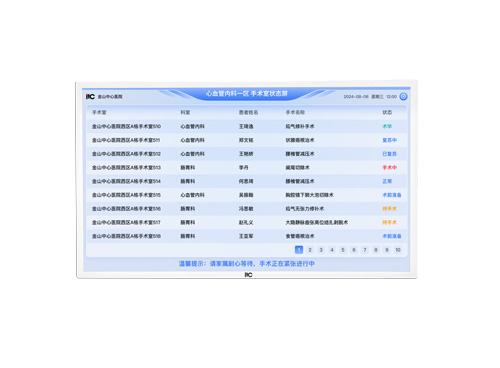

The operating room status screen is installed in the surgical waiting area to update and display the surgical status in real time, making it easy for the patient's family to check the surgical progress and relieve their anxiety. The bottom of the screen supports scrolling notifications issued by the background and pop-up windows to display emergency notifications issued by the background.


Features:


* Equipped with a 55-inch high-definition resolution display, Mohs 7 hardness explosion-proof tempered glass , and 178° ultra-wide viewing angle .

* 300-350nit brightness , over 85% NTSC color gamut, clearly presents every detail under 1.07 billion colors , automatic color and image enhancement engine, restores true colors, and fully displays the beauty of color levels.

* The narrow frame design eliminates the visual interference caused by the physical frame to the maximum extent, and the high-precision CNC processing and metal/plastic mold structure are reliable and stable .

* It supports displaying the surgical status information of the current operating room, including the operating room name, department name, patient name, and surgery name information, and can display the surgical status information in real time .

* Supports automatic switching of surgical status information pages for round-robin playback display, and the page switching time can be set in the background .

* It supports pop-up display of emergency notifications on the surgery status screen, and scrolling playback at the bottom of the surgery status screen when ordinary notification prompts are released.


Specifications:


Screen size

55 inches

Resolution

1920 × 1080

Display scale

16:9

Brightness

300-350cd/m2

Contrast

1500:1

Viewing angle

178°

Backlight life

50000Hrs

Android version

Android 7.0

Processor

Quad Core 1.8GHz

Running memory

2GB

System memory

16 GB

Built-in speakers

5W × 2(8Ω)

USB interface

2 × USB2.0

Audio interface

1 × 3.5mm interface

Network interface

1 × RJ45 (10/100M)

Built-in serial port

1 × RS - 232

HDMI interface

1 × HDMI output

TF card input

1 × TF card holder

WIFI

1 × 2.4G WIFI

Input power

100-240V

Power consumption

≤130W

Standby power consumption

≤0.5W

Operating temperature

-10-50℃

Operating humidity

10%-80%

Machine size

1260.10 × 63 × 731.10mm

Weight

25 kg

Wall mounting holes

Horizontal 400 × Vertical 400
