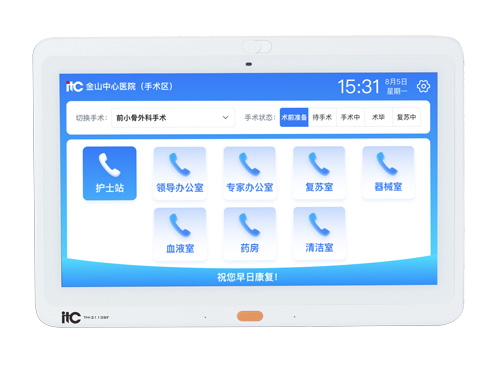

TH-3113SF Video intercom extension

The Details Related Solution Related Cases Related Video Download


Description:


The operating room intercom extension is used in hospital operating rooms. Through IP network communication, it enables visual intercom calls between the operating room and collaborative extensions such as the nurse station, instrument room, blood bank, resuscitation room, and pharmacy, providing the surgical team with an efficient communication channel with the outside world and ensuring information transmission and coordination during the operation.


Features:


* It supports one-click calling of the ward medical host or other collaborative extensions , and supports high-definition visual full-duplex intercom between extensions to ensure clear and real-time communication.

* It supports displaying all surgical information of the operating room on that day, and can switch the surgery and surgical status according to the actual progress of the surgery, such as: preoperative preparation, waiting for surgery, during surgery, completed surgery, and in recovery. The surgical status is updated in real time to facilitate medical staff and family members to understand the surgical situation .

* It supports receiving audio broadcasts and shouting broadcasts issued by the medical host, and supports reducing the display of shouting broadcasts and audio broadcast pop-up windows to ensure the timeliness and accuracy of information transmission.

* It supports displaying emergency notifications issued by the system background , and supports shrinking the emergency notification pop-up window to facilitate users to view it while handling other tasks.

* It supports two offline status display modes: server offline and host device offline . It supports synchronizing server time, adjusting ringtone volume, setting device brightness, and restoring to factory settings.

* Equipped with a high-performance quad-core processor, it provides excellent computing power and processing speed, ensuring that the device runs smoothly and responds quickly, providing users with a seamless interactive experience and efficient task processing capabilities .

* Equipped with a precise multi-touch display, users can operate and control by touching the screen, providing a more intuitive and convenient way of interaction.

* Equipped with a 13.3-inch high-resolution display, it presents delicate images and clear text, providing a richer visual experience and a more comfortable reading environment.

* Equipped with a 5MP high-definition camera to ensure clear and detailed visual effects during video intercom and recording.

* Built-in dual microphones improve audio quality and ensure clear and accurate voice conversations during calls .


Specifications:


Processor

Quad-core 2.0GHz

RAM

2GB

Memory

16 GB

Operating system

Android 11

Touchscreen

10-point capacitive touch

LCD screen

13.3 inches

Resolution

1920×1080

Viewing angle

85/85/85/85°

Display mode

Often Black

Contrast

800

Brightness

250cdm2

Screen ratio

16:9

Ethernet

100Mbps/1000Mbps

Type-c

USB OTG function

Network port

RJ45 Ethernet port (standard POE function, IEEE802.3at, POE+, class4, 25.5W)

Voice control port

6P-2.0mm socket (connect to external handheld microphone)

USB

USBHost2.0

Serial port

8P-2.0mm socket (TTL level)

Headphone socket

3.5mm stereo headphone output, with microphone input

Video format

MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9,etc.,support up to 4K video

Audio format

MP3/WMA/AACetc

Image format

Jpeg/png

Wall-mounted

100×100mm standard wall-mount VESA hole

Speaker

2×3W

Camera

5MP

Built-in microphone

Standard dual microphones

Operating temperature range

0℃~40℃

Power supply

Support DC12V/1.5A and POE power supply

Rated power

24W

Size

337.32×26.6×228.26mm

Weight

1.22kg
