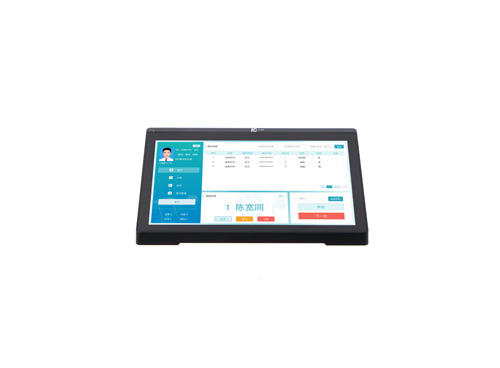

TH-3210JH Doctor calling device

The Details Related Solution Related Cases Related Video Download


Description:


The device is based on the Android operating system and is connected to the local area network wirelessly or wired. It is used by doctors in the clinic to call out numbers, and functions such as calling the next number, passing the number, re-calling, and completing the diagnosis can be performed through the touch screen.


Features:


* Supports logging in with a doctor’s exclusive account and password, and supports switching skin colors.

* Supports viewing doctor's photo, name, work number, and clinic department.

* It supports viewing the waiting patient information in the waiting list, such as the waiting type (follow-up visit, initial visit), name, patient identity (military personnel, children, etc.), and supports viewing the total number of patients currently in the queue, the total number of confirmed patients, the total number of missed appointments, and the total number of remaining patients.

* It supports operations such as designated calling, referral, calling the next patient, passing the number, re-calling, and diagnosis conclusion for patients.

* It supports the function of viewing information of patients who have been diagnosed, and supports recalling diagnosed patients for another wait time.

* It supports information query for patients whose appointments have been missed, and supports re-calling the appointments of patients whose appointments have been missed.

* Supports quick search by entering patient name and queue number in the search box.

* Doctors are supported to temporarily stop seeing patients, and their patients will automatically return to the triage desk, and nurses are supported to re-triage patients.


Specifications:


Processor

Quad-core 1.8GHz

Memory

2GB

Storage memory

16 GB

Operating system

Android 11.0

Screen

10.1-inch IPS capacitive touch screen

Resolution

1280×800

Brightness

250 cd/

Contrast

1000:1

Display ratio/display area

16:10/Display area 216×135mm

WIFI

Support WIFI connection, 802.11b/g/n

Ethernet

100M/1000M adaptive

TF

1×TF card slot (maximum support 128G)

SIM

1×SIM card slot (supports China Telecom, China Mobile, China Unicom, and China Broadcasting 4G networks)

USB interface

1×USB 2.0 interface; 1×USB 3.0 interface (supports connection of USB flash drive, mouse, keyboard, printer and other devices)

Network port

1 × RJ45 network cable interface

Audio interface

1 × 3.5 mm headphone jack

Video output

1×standard HDMI output

Power jack

1 x 5.5 × 2.1 mm power DC jack

Audio format

Support MP3, WMA, AAC, etc.

Image format

JPEG, JPG

Speaker

2×2W speakers

Power consumption

≤10W

Weight

0.8kg

Product size (L×W×H)

247×169×62mm
