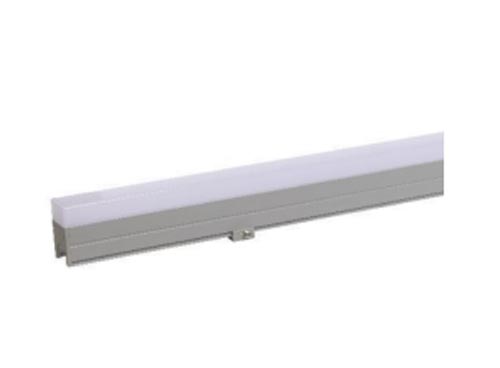

TL-LH2701/ TL-LH2702/ TL-LH2703 LED Linear Light

The Details Related Solution Related Cases Related Video Download

Description:


With the continuous development of urbanization, LED linear lights are used more and more in urban lighting projects. They are very practical and can be freely matched to highlight the outline of buildings, or to make digital screen effects.


Feature:


* Unique structure, simple and beautiful appearance, waterproof design with full sealant potting, and protection level of IP65;

* Aluminum alloy fixture, stainless steel screw, multiple installation methods, surface electrostatic spraying paint, strong corrosion resistance, making it suitable for harsh outdoor environments;

* It has the excellent optical performance, and the external anti-UV PC cover can effectively improve the uniformity of light mixing effects;

* The integration of monochromatic/RGB/RGBW supports DMX512 control system; concise wiring makes the fixture installation and maintenance more convenient;

* Electronic constant current program design ensures more stable performance; the seamless structure design is adopted.


Specification:


Model

TL-LH2703

TL-LH2702

TL-LH2701

Input voltage/power

DC24V/3W

DC24V/6W

DC24V/12W

Number of LED lamp bead/light source

Philips/12PCS

Philips/24PCS

Philips/48PCS

Beam angle

120°

Housing color

Sand gray

Color temperature

3000K

Control method

/

Installation method

Fixed

IP level

IP65

Product size

300×30×46mm

500×30×46mm

1000×30×46mm

Packaging size

1030×340×160mm

1080×340×160mm

1080×340×160mm

Net weight/Gross weight

0.2KG/22.5KG (105PCS/box)

0.3KG/22KG (70PCS/box)

0.55KG/21KG (35PCS/box)

Certification

CE/ROHS
