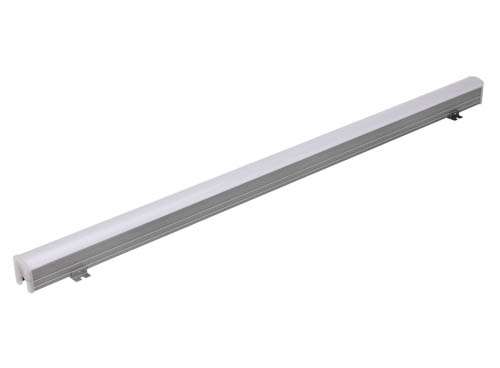

Description:
With the continuous development of urbanization, LED linear lights are used more and more in urban lighting projects. They are very practical and can be freely matched to highlight the outline of buildings, or to make digital screen effects.
Feature:
* Unique structure, simple and beautiful appearance, waterproof design with full sealant potting, and protection level of IP65;
* 6063 aluminum alloy fixture, SUS304 stainless steel screw, multiple installation methods, surface electrostatic spraying paint, strong corrosion resistance, making it suitable for harsh outdoor environments;
* The integration of monochromatic/RGB/RGBW supports DMX512 control system; concise wiring makes the fixture installation and maintenance more convenient;
* Built-in constant current driving circuit, allowing it to maintain efficient illumination. It operates stably over a wide voltage range, improving surge protection capability and avoiding flickering of the lights caused by changes in the external power supply voltage. During the process of connecting the lights in series, it ensures consistent brightness between the first and last light fixtures.
Specification:
Model
TL-LH2401
TL-LH2402
TL-LH2403
Input voltage/power
DC24V/12W
DC24V/6W
DC24V/3W
Light source
OSRAM/48PCS
OSRAM/24PCS
OSRAM/12PCS
Beam angle
120°
Color temperature
3000K (1900K, 2100K, 4000K, 5700K optional)
Light effect
≥80lm/W
Color rendering index
Ra≥80
Color tolerance
SDCM≤5
Light source life
50000H
Control method
ON/OFF
IK Class
IK08
IP Class
IP65
Shell material
Aluminum + tempered glass
Shell color
Sand gray
Installation method
Fixed (optional embedded buckle installation)
Product size (L×W×H)
1000*28*40mm
500*28*40mm
300*28*40mm
Packaging size (L×W×H)
1070*330*220mm
570*330*395mm
370*330*395mm
Net weight/Gross weightNet weight/Gross weight
0.9kg/12.6kg(12PCS)
0.5kg/14.4kg(24PCS)
0.3kg/9.6kg(24PCS)
Remark
Light baffle optional
