Description：

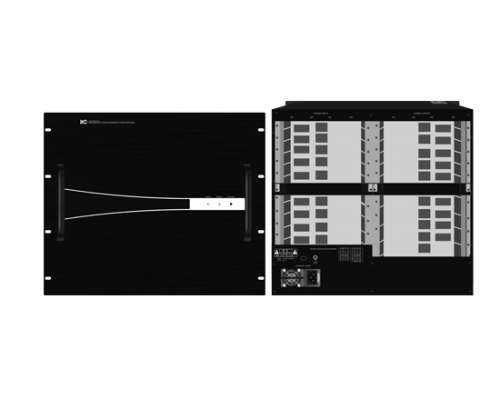

Hybrid seamless matrix switcher is a flexible matrix signal switcher. With high-performance hardware design, it perfectly supports switching and processing of various HD digital/analog signals. It provides a one-stop solution for various video and control signal distribution/switching/processing in various industries, which can be widely used in broadcast and television projects, multimedia conference halls, LED video wall projects, TV teaching, command centers and other places.

Feature：

*  Modular matrix controller with configurable input/output signal boards, support 144×144 signal switching.

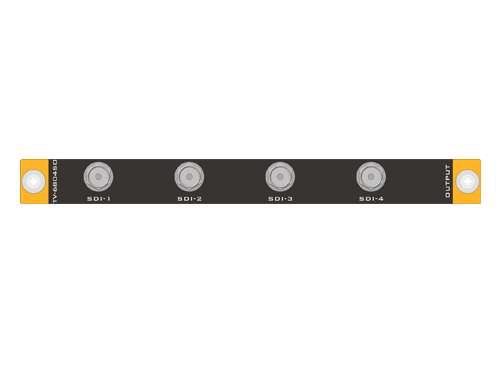

*  Support HDMI, DVI, VGA, SDI, HD BaseT, optical fiber or any input / output signal board, improve system flexibility. DVI input board is compatible with CVBS, YUV, VGA signal, VGA input / output board are compatible with CVBS, YUV, VGA.

*  Customized configuration of various types of the same or different I/O boards to form a matrix of single interface type or multi-interface type, such as HDMI matrix, DVI matrix, VGA matrix, YUV matrix, Video matrix, etc.

*  Support maximum resolution up to 3840x2160 30Hz.

*  Support seamless switching function, no black screen signal during the switching process.

*  Flexible control mode, with 1 channel RS-232, 1 channel RS-485, 1 channel TCP/IP port (PC software), support external panel control interface.

*  Support audio and video signal synchronization switching, switching response speed is fast.

*  Support analog audio and HDMI embedded audio selection input.

*  Support analog audio and HDMI embedded audio output at the same time.

*  HDBaseT input and output signals support bidirectional RS-232 and bidirectional IR signal transmission, which can switch between RS-232 and IR signals with video signal, or separate switching mode, and support POC external power supply.

*  Support power-off memory protection to avoid repeated setting action when power off.

*  Support intelligent temperature control to control the operation of the matrix fan;

*  Configure redundant power supply and support hot swap;

*  Multiple preset instructions can be stored in the system, which can be switched with one button when calling.

*  Support KVM agent management function, switch and manage multiple computer devices through a set of keyboard, mouse and display, bring users real-time and full-scale management and control experience.
