Description：

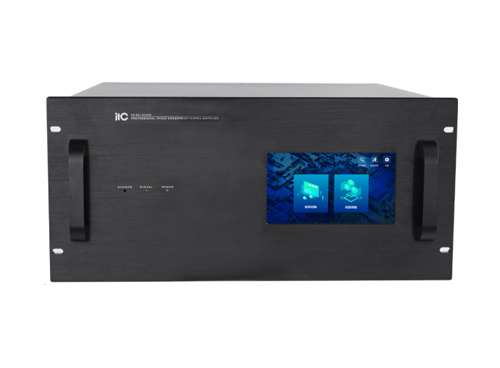

Hybrid Seamless Matrix Switcher is a flexible matrix signal switcher. With high-performance hardware design, with perfect support for all types of high-definition digital / analog signal switching processing. It provides a one-stop solution for various video and control signal distribution switching processes in various industries and can be widely used in radio and television engineering, multimedia conference hall, LED video wall, television teaching, command and control center and other places.

Feature：

*  It adopts pure hardware standardized chassis design and supports 36×36-channel signal switching.

*  Support HDMI, DVI, VGA, SDI, HD BaseT, optical fiber or any input / output signal board, improve system flexibility. DVI input board is compatible with CVBS, YUV, VGA signal, VGA input / output board are compatible with CVBS, YUV, VGA.

*  Customized configuration of various types of the same or different I/O boards to form a matrix of single interface type or multi-interface type, such as HDMI matrix, DVI matrix, VGA matrix, YUV matrix, etc.

*  The input and output resolution supports 4K@60Hz.

*  Support seamless switching function, no black screen signal during the switching process.

*  It adopts multi-threaded communication technology, supports access to 1 control board, has 1 RS-232 interface, 1 RS-485 interface, 1 TCP/IP port, and supports extended touch screen control.

*  Support audio and video signal synchronization switching, switching response speed is fast.

*  Support analog audio and HDMI embedded audio selection input.

*  Support analog audio and HDMI embedded audio output at the same time.

*  HDBaseT input and output signals support bidirectional RS-232 and bidirectional IR signal transmission, which can switch between RS-232 and IR signals with video signal, or separate switching mode, and support POC external power supply.

*  Support power off memory protection to avoid repeated setting action when power off.

*  Redundant power supply is configured , support hot swap;

*  Multiple preset instructions can be stored in the system, which can be switched with one button when calling.

*  It adopts infinite scaling algorithm and video codec processing technology, supports adjustment of picture chroma, brightness, contrast, color temperature, gamma value, etc., and supports HDR picture quality enhancement function.

Specification：
