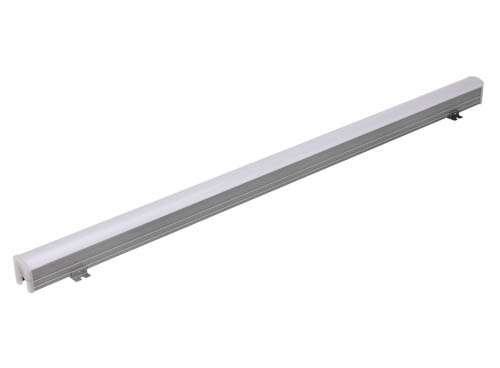

TL-LH2104/ TL-LH2105/ TL-LH2106/ TL-LH2107/ TL-LH2108/ TL-LH2109 LED Linear Light

The Details Related Solution Related Cases Related Video Download

Description:

With the continuous development of urbanization, LED linear lights are used more and more in urban lighting projects. They are very practical and can be freely matched to highlight the outline of buildings, or to make digital screen effects.

Feature:

* Unique structure, simple and beautiful appearance, waterproof design with full sealant potting, and protection level of IP65;

* 6063 aluminum alloy fixture, SUS304 stainless steel screw, multiple installation methods, surface electrostatic spraying paint, strong corrosion resistance, making it suitable for harsh outdoor environments;

* It has the excellent optical performance, and the external anti-UV PC cover can effectively improve the uniformity of light mixing effects;

* The integration of monochromatic/RGB/RGBW supports DMX512 control system; concise wiring makes the fixture installation and maintenance more convenient;

* Built-in constant current driving circuit, allowing it to maintain efficient illumination. It operates stably over a wide voltage range, improving surge protection capability and avoiding flickering of the lights caused by changes in the external power supply voltage. During the process of connecting the lights in series, it ensures consistent brightness between the first and last light fixtures.

Specification:

Model	TL-LH2104	TL-LH2105	TL-LH2106	TL-LH2107	TL-LH2108	TL-LH2109
Input voltage/power	DC24V/10W	DC24V/5W	DC24V/3W	DC24V/12W	DC24V/6W	DC24V/3W
Light source	Sanan/48PCS	Sanan/24PCS	Sanan/12PCS	EPISTAR/48PCS	EPISTAR/24PCS	EPISTAR/12PCS
Beam angle	120°
Color temperature	RGB
Light effect	≥20lm/W
Color rendering index	Ra≥60
Color tolerance	SDCM≤5
Light source life	50000H
Control method	DMX512/8 segment
IK Class	IK08
IP Class	IP65
Shell material	Aluminum + white PC cover
Shell color	Sand gray
Installation method	Fixed (optional embedded buckle installation)
Product size (L×W×H)	10003050mm	5003050mm	3003050mm	10003050mm	5003050mm	3003050mm
Packaging size (L×W×H)	1060310340mm	560310485mm	360310485mm	1060310340mm	560310485mm	360310485mm
Net weight/Gross weightNet weight/Gross weight	0.6kg/14kg(20PCS)	0.3kg/11kg(30PCS)	0.2kg/7.5kg(30PCS)	0.6kg/14kg(20PCS)	0.3kg/11kg(30PCS)	0.2kg/7.5kg(30PCS)
