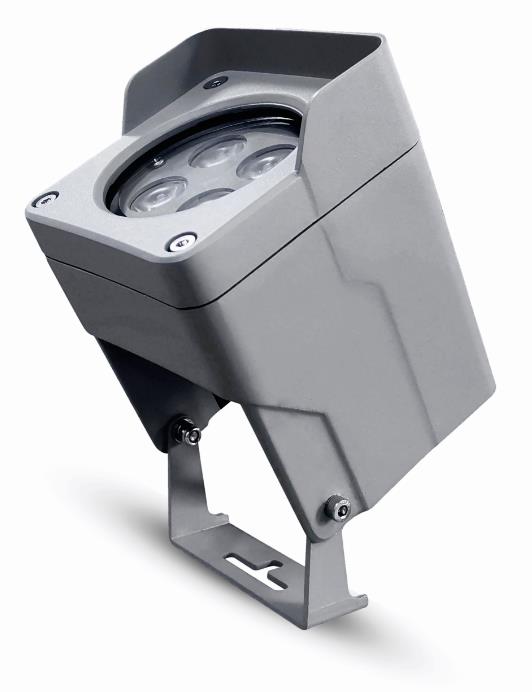

TL-LH3101/ TL-LH3102 LED Flood Light

The Details Related Solution Related Cases Related Video Download


Description:


Application:Building facades, squares, leisure sports fields, stages, billboards, rockery, building exterior lighting, landscape lighting, signs and indicative lighting, entertainment venues and stage lighting, bridges, etc.


Feature:


* The lamp body adopts the appearance design concept of the camera, and the curve is smooth.

* High-conductivity aluminum radiator, ventilation and convection design, smaller fixture and the larger power.

* Imported American CREE light source, high luminous flux output, good light color consistency,

* Glue-free waterproof design.

* Built-in constant current driving circuit, allowing it to maintain efficient illumination. It operates stably over a wide voltage range, improving surge protection capability and avoiding flickering of the lights caused by changes in the external power supply voltage. During the process of connecting the lights in series, it ensures consistent brightness between the first and last light fixtures.


Specification:


Model

TL-LH3101

TL-LH3102

Input voltage/power

DC24V/12W

DC24V/10W

Light source

CREE/4PCS

CREE/4PCS

Beam angle

15°(30°, 45°, 60° optional)

Color temperature

3000K (1900K, 2100K, 4000K, 5700K optional)

Light effect

≥80lm/W

Color rendering index

Ra≥80

Color tolerance

SDCM≤5

Light source life

50000H

Control method

ON/OFF

IK Class

IK08

IP Class

IP65

Shell material

Aluminum + tempered glass

Shell color

Sand gray

Installation method

Bracket screws

Product size (L×W×H)

89*90*131mm

Packaging size (L×W×H)

535*405*255mm

Net weight/Gross weightNet weight/Gross weight

0.8kg/15kg(16PCS)
