VA-104C Fireproof Ceiling Speaker

The Details Related Solution Related Cases Related Video Download


Specification:


Model

VA-104C

Power Taps@100v

6W,3W,1.5W

Impedance

17000/33000/67000

SPL

91dB

Freq Response(t3dB)

110-16KHz

Sensitivity

71dB

Cutout size

155 mm

Coverage angle 500Hz

180°

Coverage angle 1KHz

175°

Coverage angle 2KHz

170°

Coverage angle 4KHz

85°

Size

180X120 mm

Welght

0.9Kg



If reprinted, please indicate the source, the original link https:http://www.itctech.com.cn/pro/index/art/3312.html
Related Products

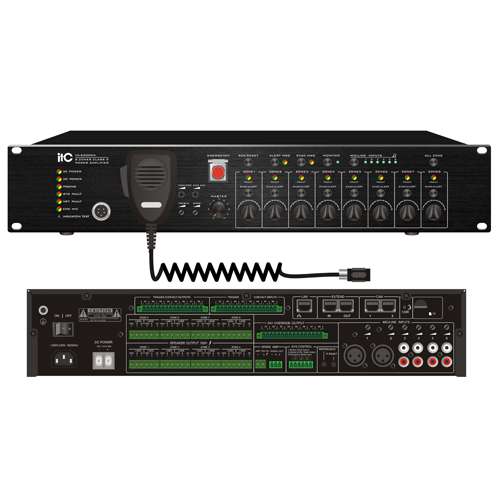

VA-6200MA Voice Alarm Controller

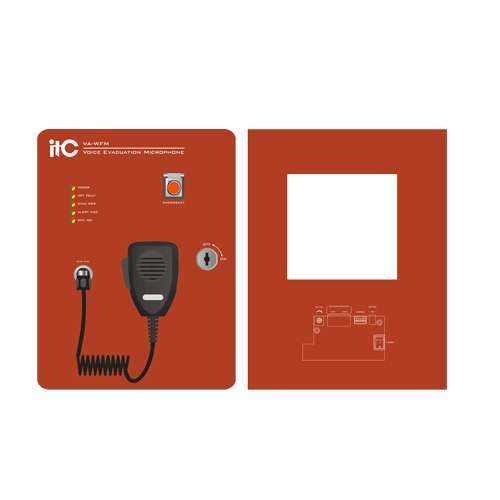

VA-WFM Voice Evacuation Microphone

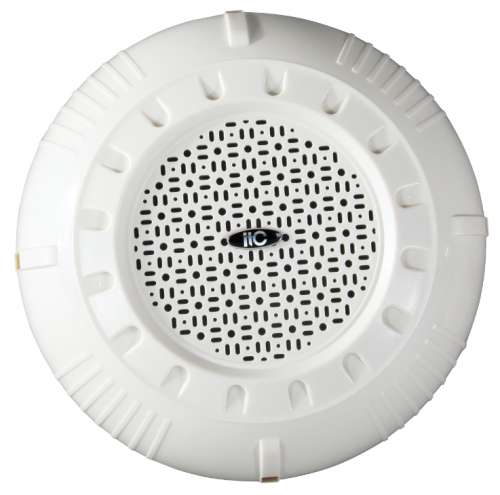

VA-105T Ceiling Speaker

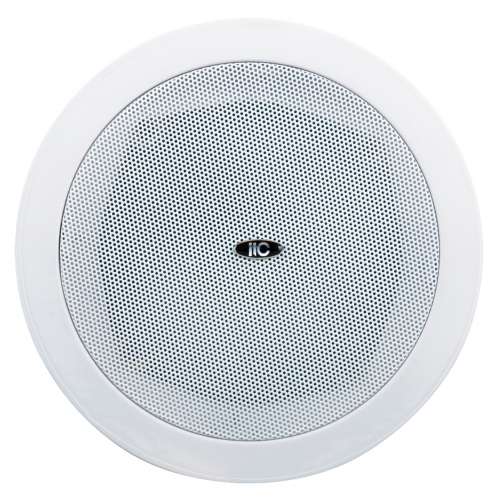

VA-105F Ceiling Speaker

VA-104C.pdfDownload
