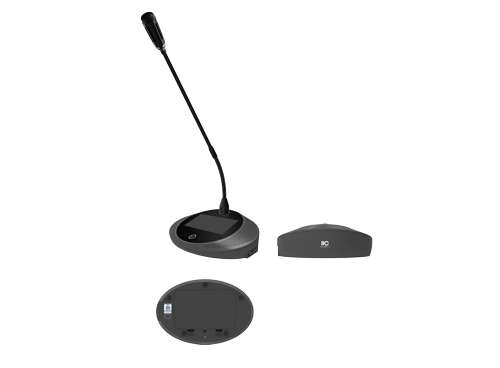

TS-W303 Chairman Unit TS-W303A Delegate Unit

The Details Related Solution Related Cases Related Video Download


Feature:


* With 48KHz sampling rate, it has the better sound quality than CD’s, clear and loud sound. There is DSP audio processing inside, there is no "pop" low-frequency impact sound.

* Advanced processing chip architecture, and unique processing algorithms, microphone boot connection time is only 5 seconds.

* With the function of intelligent detection of faults, it prompts the user for AP failure, host communication failure, weak signal,etc.

* Support charging via Typle-C port, smart status indication.

* SSID and password functions can be set.

* Support the function of switching display between Chinese and English, unified setting through PC software.

* With speech countdown and speech timekeeping function.

* The delegate unit has the function of applying for speech, and the chairman unit can agree or refuse the application.

* With voice control, the microphone can be turned on intelligently. You can adjust voice sensitivity and set set the off time by the PC software.

* Support sign-in function, set and initiate sign-in through PC software.

Support flexible and convenient meeting voting function, support five-button election, three-button voting function.

* Adopt 128-bit AES encryption technology, support WPA/WPA2 wireless security technology, prevent eavesdropping and unauthorized access, provide higher confidentiality of the conference system.

With wireless transmission technology, easy to arrange venue layout and meeting.

* The chairman has a priority function to close all delegates that are currently speaking.

* Built-in lithium battery, battery capacity supports 14 hours of continuous speech.

* Support offline program upgrade.

* Adopt 4.3-inch full-view IPS capacitive touch screen.

* The power switch button is at the bottom of the microphone to make the overall microphone more delicate .



Specification:



Model

TS-W303/TS-W303A

Microphone type

Cardioid directional electret

Frequency response

80Hz~16KHz

Microphone input impedance

680Ω

Sensitivity

-41±1.5dB (0dB=1V/Pa,at 1KHz)

Maximum SPL

100dB

SNR

>80dB(A)

Crosstalk

>70dB

Dynamic range

>80dB

THD

<0.1%

Maximum power consumption

3W

Standard

IEC60914

Power supply

18650 lithium battery

Charging method

Connect the charging box through the TYPE-C interface

Color

Graphite grey

Sign in function

Touch button to sign in

Display screen

IPS screen

Size (LxWxH)

149*145*61(mm)

Installation method

Desktop

Wireless frequency range

5.15~5.85GHz

Battery capacity

10400mAh

Mic rod length

380mmblack

Weight

1Kg

Speech mode working hours

13 hours

Mixed mode working time

14 hours
