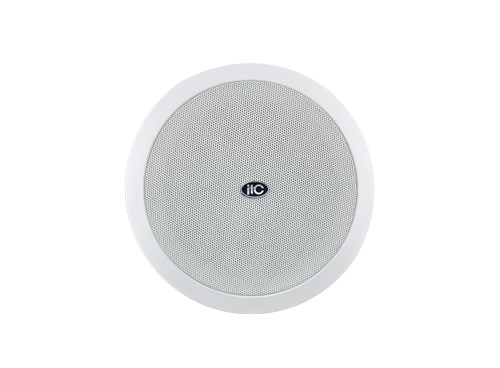

T-206CW/ T-208CW Ceiling Speaker

The Details Related Solution Related Cases Related Video Download


Features:


Indoor high fidelity speaker, fully enclosed structure, iron flame retardant protective rear cover, multiple power constant pressure and constant resistance selection. Fix the presser foot system with screws. Applicable to hotels,clubs, shopping malls etc.


Specification:


Model

T-206CW

T-208CW

Power taps(100V)

3.8W, 7.5W, 15W, 30W

5W, 10W, 20W, 40W

Power taps(70V)

1.9W, 3.8W, 7.5W, 15W, 30W

2.5W, 5W, 10W, 20W, 40W

Impedance

2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω

2KΩ/1KΩ/500Ω/250Ω/125Ω

Input

70V/100V/8Ω

70V/100V/8Ω

SPL1W/1M

89dB ±3dB

90dB±3dB

Frequency response-10dB

80-20KHz

80-20KHz

Speaker driver

6"×1      1.5"×1

8"×1     1.5"×1

Cutout size

208mm

245mm

Dimensions

241×165mm

280×195mm

Weight

1.6Kg

2.5Kg
