Description:
The controller is used for the collection and coding of HD video signals and the output of audiovisual signals outside the paperless conference system. It can support the interconnection between external and internal audiovisual signals for the system, and support conference information display functions such as sign-in, voting and screen-sharing.
Features:
* Standard rack-mount design(2U), embedded HD/SD video signal processing modules, synchronous/asynchronous processing of video signal input and output.
* Support HDMI and VGA signal input; external signal videos can be broadcast to all conference terminal and displayed in real time.
* Support HDMI and DVI signal output, any conference terminal videos can be output and displayed on big screens or other signal display devices.
* With one 3.5mm audio input interface and one 3.5mm audio output interface, can realize synchronous input/output of audiovisual signals.
* Support multiple HD outputs, including full HD 1080P, HD 720P, etc.
Specification:
Model |
TS-8308 |
CPU |
I5-4460(Quad-core/four threads/CPU main frequency 3.2GHz)(Due to frequent product upgrades, its performance will continue to be optimized) |
RAM |
4G DDR3 1600 |
Hard disk |
64G SSD |
Network card |
Gigabit network port ( RJ45) |
Video card |
MiniPCIE acquisition card |
Video input port |
HDMI, VGA |
Video output port |
HDMI, DVI |
Audio port |
1×3.5mm audio input port, 1×3.5mm audio output port |
Others |
2×serial ports, 4×USB ports |
Working environment |
Environmental temperature:5℃~40℃; related humidity:≤75%, no condensation |
Working power supply |
DC 18.5V/6.5A |
Size |
484×301×88 |
Weight |
4.0Kg |
Color |
Black |
TS-8308 Paperless Intelligent Streaming Media Server

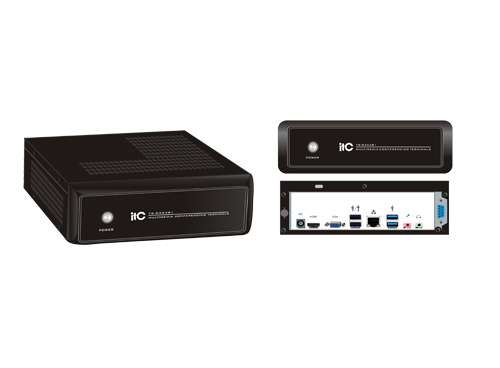

TS-8304B1 Interactive Paperless Conference Terminal

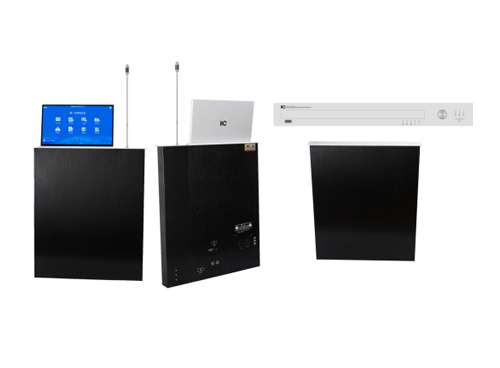

TS-F173MT3 Paperless Lifter (paperless ultra-thin 17.3-inch capacitive LCD screen with microphone lifter, intelligent elevation adjustable 30 degrees)
