Features:

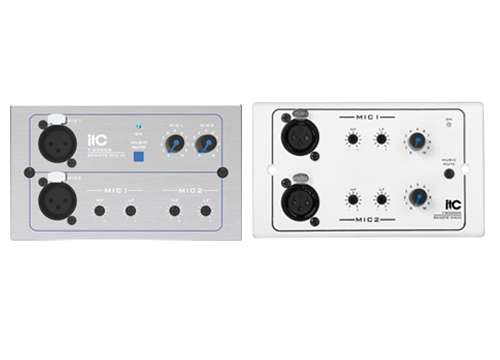

* The T-8000D remote microphone input module is connected with T-8000 through universal industrial standard CAT 5 where a remote location announcement is needed.

* Two different options: T-8000D of aluminum material in grey color and T-8000DW of ABS material in white color.

* Each controller provides eight RJ45 ports for the remote module.

* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integration of RS 485 communication, audio transmission and DC 24V power supply together.

* The remote module family also has T-8000B and T-8000C.

* Two remote mic by XLR inputs with volume control and bass, treble tone controls.

* A paging priority override music button is provided when a remote paging is needed.

* DC 24V power supply from controller, low power consumption 5W.

* Extra DC 24V power supply is needed when communication distance is more than 50 meters.

* Analog to digital conversion working principle to adjust controller's volume.

* Metal mounting box is supplied.

Specifications:
