VA-504/ VA-505 Fireproof Ceiling Speaker

The Details Related Solution Related Cases Related Video Download


Descriptions：


Indoor with flame retardant iron back cover full audio ceiling speaker, fireproof design, spring presser foot system, convenient for user installation. Application: fire fighting, shops, supermarkets, hotels, etc.


Specification：

Model

VA-504

VA-505

Power Taps @100V

6W

6W

Power Taps @70V

3W

3W

Impedance

COM/1.7KΩ

COM/1.7KΩ

SPL(1W/1M)

89dB

90dB

Frequency Response (-10dB)

110-16KHz

110-18KHz

Finish

Baffle: Steel, White

Baffle: Steel, White

Grille: Aluminum, White   Cover: Steel, Orange

Grille: Aluminum, White   Cover: Steel, Orange

Speaker Driver

4" x 1

5" x 1

Cutout Size

155mm

170mm

Dimension

180 x 106mm

200 x 120mm

Weight

0.9Kg

0.9Kg

If reprinted, please indicate the source, the original link https:http://www.itctech.com.cn/pro/index/art/1365.html
Related Products

T-106U Ceiling Speaker (3W-6W-9W)

 2016-12-27上传word解析的图片

T-108L Ceiling Speaker （ Coaxial Speaker ） (1.87W 3.75W 7.5W 15W)

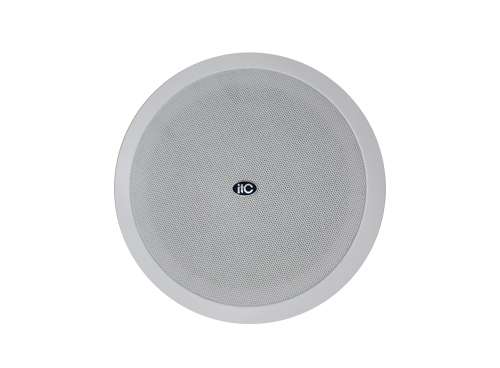

T-208B Ceiling Speaker (Coaxial Speaker) (1.87W-3.75W-7.5W-15W)
VA-504 VA-505.pdfDownload
