Professional Smart Office, Best Video Conferencing System Solutions.

Video conference is a meeting in which people in two or more locations conduct face-to-face conversations via communication devices and network.

SERVER	CLOUD PLATFORM	VIDEO TERMINAL	PC SOFT TERMINAL	MOBILE APP	VIDEO PHONE

4K HD Image Quality, HiFi Stereo

* With the video codec technolog h.265 standard,ultra-low bandwidth can achieve 4K ultra HD display.

All-in-one Design Creates Easier Meeting Experience and Simpler Deployment

* itc NT90MT series integrated terminal device adopts camera,codec integrated design, simplifying the installation.

Compatible with RTSP Protocol Monitoring Equipment

* Support H.323/SIP，compatible with Polycom、Huawei、Cisco、ZTE.

* Support IP camera enter conference directly，compatible with Hikvision、Dahua.

* Open interface， Microsoft teams , Skype for business.

itc Products Built for Your Conference Solution

System Features

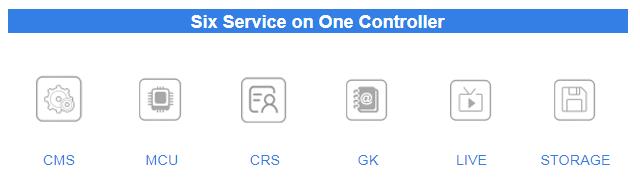

Six Service On One Box: ITC VCS Server，integrated CMS、CRS、MCU、GK、live、record 6 functions ，All services can be deployed individually and in combination according to actual needs.

Graphical management tools，Unified management of equipment across the entire network、Business monitoring, upgrade and maintenance, significantly reducing OPEX.

Support MCU Resource Pool Mode: The single machine supports 160 users to join, and MCU concatenation can reach 1000 users.

Multiple MCU can be combined into a variety of cascading modes, including a tree cascade and a network cascade. The composition: "pool", in this MCU pool, resources can be shared and scheduled, and can be backed up.

TV Wall Output Function: ITC cloud video conferencing VCS server, adopts the plug-in module design, supports 5 media resource cards, each board supports 4 HDMI interfaces.

Supports up to 20 channels of HDMI interface, supports 20 channels of video conference screen， support output to large screen or video wall display, supports Ultra HD 4K resolution.

Multi-Screen Layout: Supports multi-screen layout, the number of split screens is up to 64; automatic split screen is supported; in the same conference, all conference sites can transmit dual streams at the same  time.

Extreme High Definition: Using the industry's top video coder technology H.265 standard, ultra low bandwidth can achieve 4K extreme high-definition display.

Only 2M is required to achieve 4K video effect; only 1M can achieve 1080P60 frame video effect; 512K can achieve 1080P30 frame video effect.

Cloud-based HD Video Conference Server Platform VCS8000 Series

1. Module design with carrier-class and card plug-in.

2. Built-in chart. it supports icon to display usage rate for and meeting sites, the system can count information such as meeting times, meeting duration, number of meetings etc., according to time, meeting type and participants gathering.

3. It supports distributed MCU composed of cloud archi- tecture, in the whole system, as long as there is one MCU running, the meeting can run normally. Support multiple MCU to be tree cascading or reticular cascad- ing modes to build a “MCU pool”. In this pool, all resources can be shared, scheduled and backed up.

4. One MCU max support 10-channel full functional meet- ing, 100 VCS or virtual meetings, 160-channel 1080P concurrent users, allowing 1000 users to access into  the meeting after cascaded.

5. Support meetings of mixed speed, mixed video format, mixed protocol.

HD Video Conference Terminal of Medium and Large size NT90LT Series

1. Adopting split type structure, built-in hardware video processing unit, with embedded operating system, non-Windows, Android, etc.

2. With various interfaces, including 8-channel HD video inputs, 3 -channel HD video outputs.

3. Support 4K HD video conference signal input and output.

4. With ultra strong network adaptability, it adjusts the resolution according to the network automatically according to the network to ensure the meeting go fluently.

Small Size Integrated HD Video Conference Terminal NT90MT Series

1. Adopting split type structure, built-in hardware video processing unit, with embedded operating system, non-Windows, Android, etc.

2. With various interfaces, including 3-channel HD video inputs, 2 -channel HD video outputs.

3. With ultra strong network adaptability, it adjusts the resolution according to the network automatically according to the network to ensure the meeting go fluently.

4. With H.239 dual-stream protocol, both main and auxiliary streams can reach 1080P

Deliver instant connectivity and radical simplicity to your meeting rooms.
