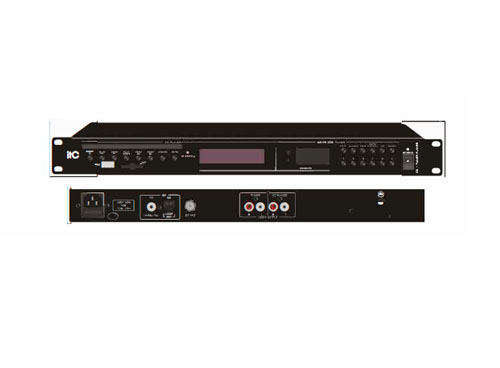

○Standard cabinet-type CD, MP3 (with USB and SD card interfaces) and radio integrated playback equipment.
○Provide a combined audio source for the broadcasting system, and manually control the CD, MP3,Bluetooth and radio players.
○Built-in standard cabinet-type design (1U), black alumina brushed panel, humanized drawing, exquisite craftsmanship, showing high-grade temperament.
○Built-in USB interface / SD card slot, CD movement and radio, Bluetooth four audio sources, CD player and MP3 player share one channel output, radio and Bluetooth share one channel output.
○CD uses high-end suction movement.
○The radio uses a high-sensitivity radio module, FM and AM (AM / FM) stereo two-band reception is optional, and the radio frequency memory can be stored up to 99 bands.
○With infrared remote control function, and can independently control the volume control.
|
Model |
TF-VN212/2 |
|
Frequency Response |
20Hz~20KHz (-2dB) |
|
THD |
≤0.1% |
|
Channel Separation |
65dB |
|
Dynamic Range |
75dB |
|
S/N Ratio |
65dB |
|
CD Audio Output |
775mV |
|
TUNER |
|
|
Radio Frequency |
FM: 87.5-108.0MHz, AM: 522-1620KHz |
|
Antenna Input |
FM: 75Ω Unbalance, AM: Low impedance round ring antenna |
|
Sensitivity |
FM: ≤10μV, AM:≤100μV |
|
Band Memory |
99 |
|
Radio Audio Output |
775mV |
|
Power Supply |
~220V 50Hz |
|
Dimensions |
484 x 209 x 44mm |
|
Net Weight |
3.8Kg |
