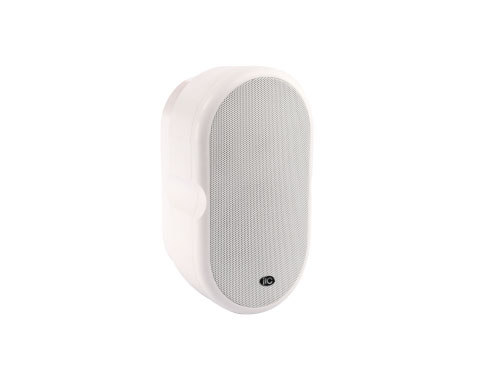

Wall-mounted Speaker TS-705Y

The Details Related Solution Related Cases Related Video Download


Feature:


* The housing is made of the integral molding of polystyrene material, light in weight and easy to install in various application scenes.

* The front panel adopts iron mesh decorative parts, which is neat and beautiful.

* The multi-angle adjustable mounting bracket is convenient for various application scenes.

* Adopt a 5.25-inch mid-woofer unit and a 25mm silk film tweeter unit.

* 5-level switch for constant pressure volume adjustment.

* Built-in high-quality linear audio power transformer.

* Widely used in various small and medium conference rooms, banquet halls, hotels, commercial buildings, schools, entertainment places, etc.


Specification:


Model

TS-705Y

Rated power

100W

Peak power

400W

Maximum SPL

112dB

Rated impedance

Frequency response

80Hz-20kHz





Speaker unit

5.25-inch mid-woofer + 25mm silk film tweeter

Dimension

186×163×337mm (W×D×H)

Weight

4.1kg

Sensitivity                       90dB @1W/1m
