Description：

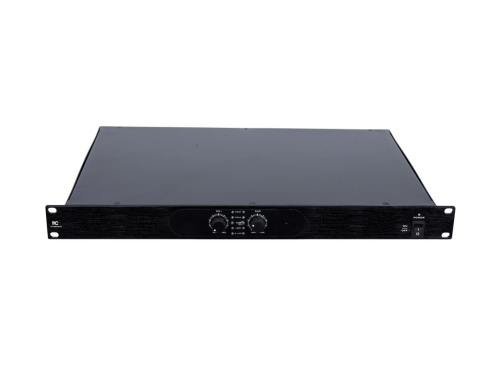

When paired with a broadcast system, it provides power amplification, offering you a perfect sound quality solution.
Features：
1.High-end 1U sandblasted panel, beautiful and elegant; 2.The amplifier has an efficiency of up to 85%.
3. The Class D power amplifier design utilizes the latest patented technology.
4. The optimal internal heat dissipation layout keeps the internal operating temperature at 55℃ , which can extend the service life of the equipment.
5. The device interface includes two constant voltage 100V/constant resistance 4-16Ω power switching outputs. 6.It has a fault detection output interface to monitor the power amplifier's operating status in real time.
7.It has two independent power supplies. 8.Features 2-channel terminal balanced input 9.It has two terminal power outputs.
Specification：
|
Output power |
2*500W |
|
Output method |
100V constant voltage output, 4-16Ω constant resistance output |
|
Input sensitivity (impedance) |
±385mV/20KΩ (balanced) |
|
Overload source electromotive force |
>11dB |
|
frequency response |
80Hz~16kHz (+1, -3dB) |
|
S/N |
≥85dB |
|
Total Harmonic Distortion |
≤0.1% at 1kHz, 1/3 of rated power |
|
Control method |
Remote power switch control and fault detection feedback |
|
protection mechanism |
High temperature protection, overload protection, short circuit protection |
|
Cooling mechanism |
Forced ventilation and heat dissipation by fans |
|
Status indicator lights |
Signal, peak, protection, power supply |
|
power supply |
230V/50Hz |
|
Power consumption |
1250W (MAX) |
|
Dimensions (width, depth, height) |
484mm×315mm×44mm |
|
weight |
4.7kg |
