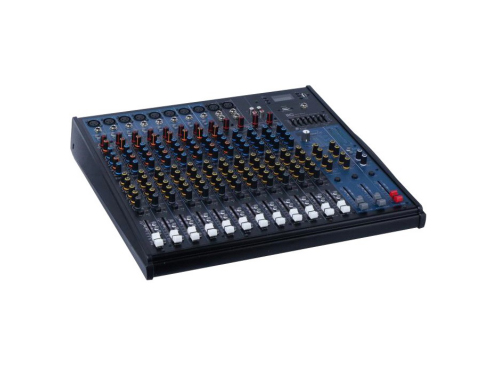

Mixer TF-P16FX-4

The Details Related Solution Related Cases Related Video Download

Features:

1.15 high-precision carbon film faders with 60mm travel.

2.Built-in MP3 player, supports 1 USB interface, external USB flash drive to play music. 3.Built-in USB sound card, connect to computer for music playback and sound recording. 4.Built-in 24-bit DSP effects processor with 100 preset effects.

5. It has 10-channel Mic input interface compatible with 8-channel line input interface, and the microphone input interface has 48V phantom power.

6. It has 2 sets of stereo inputs and 4 RCA inputs for connecting stereo devices.

7. It has 1 set of main mix breakpoint inserts and 8 breakpoint inserts, and can connect additional processors (compressors, equalizers, limiters, etc.).

8. It has 1 USB power supply port, which can be connected to a USB lighting. 9.Support 7-band graphic equalizer fader adjustment.

10.Large professional mixer, with ultra-low noise discrete microphone preamplifier and +48V phantom power supply, powerful and comprehensive functions, and beautiful sound quality.

Specification:

Rated Power	30W
Line Input	8-way single-plug mono/stereo automatic switching hybrid interface
Supply voltage	AC 100-240V 50/60Hz
Microphone Input	10 channels (10 XLR ports)
INSERT	1 main mix insert, 8 inserts
Level Meter	2x12-dot pitch LED level indicator
USB interface	Connect USB drive to play music
USB sound card port	Support computer recording/playback, playback through CH13/14 channels
Distortion	<0.03% at+0dB,22Hz-22KHz A-weighted
Sensitivity	+2 0dB ~-30dB
Phantom Power	CH1-CH8 each channel with 48V phantom switch independent control
Frequency Response	20Hz-20kHz, ±2dB
Stereo input channels	2 groups (4 mono), 4 RCA inputs
Mono equalization	High frequency: +/-15dB @12KHz; Mid frequency: +/-15dB @100Hz-8KHz; Low frequency: +/-15dB @80Hz
Stereo equalization	High frequency: +/-15dB @12KHz; Mid frequency: +/-15dB @3KHz or +/-15dB @500Hz; Low frequency: +/-15dB @80Hz
Main Mix Crosstalk	<-80dB @0dB 20Hz-22KHz A-weighted, main output: 0dB, other channels: minimum
Effects	24-bit DSP effects (including vocal, small house, hall, echo, echo + reverb, plate, vocal plate, chorus GTR, rotary GTR, vibrato GTR types), 100 preset effects
Signal-to-Noise Ratio	<-100dBr A-weighted
Output Channel	2 stereo main outputs, 4 group outputs, 4 auxiliary outputs, 1 stereo monitor output, 1 headphone monitor output, 1 effect output
Dimensions (L x W x H)	440×480×108mm
weight	7.5Kg
