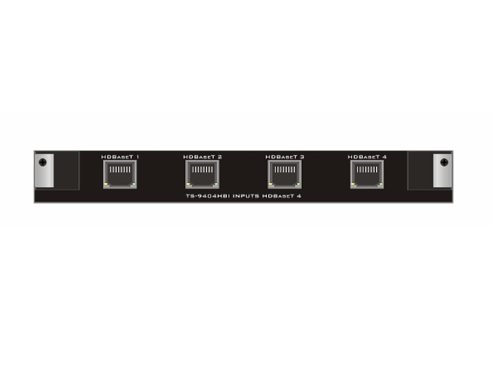

It is specially designed for smart HD seamless hybrid matrix in the market. It supports digital HD 1080P signal, featuring high integration. The quantity of the boards is optional as needed. It is very convenient for application and maintenance.
* Support 4 high-speed RJ45 input interfaces.
* Fast and seamless switching, no flicker, no black screen.
* Support power off memory protection, and unique ESD electrostatic protection function;
* Support infrared serial port transparent transmission (With the HDBaseT sending/receiving box, it can realize infrared serial input and output);
* Use CAT5e/6 wire, the maximum input distance is up to 100M;
* Compatible with HDBaseT protocol;
* Support hot swap, plug and play, extremely convenient.
* Input maximum resolution: 1920x1200P@60.
|
Model |
TS-9404HBI |
|
Interface |
4CH high speed RJ45 |
|
Protocol |
HDBaseT protocol |
|
Pixel bandwidth |
165MHz, full digital |
|
Interface bandwidth |
2.25Gbps, full digital |
|
Maximum resolution |
Normal-PC: 1600x1200@60_24bit |
|
HDPC: 1920x1200P@ 60_24bit |
|
|
HDTV: 1920x1080P@60_36bit |
|
|
Signal type |
High-speed differential signals defined in the HD BaseT protocol |
|
Network cable power supply |
With POC power supply function, it can provide remote power supply for TS-9506 series twisted pair transmitter, which is convenient for system wiring. |
|
Maximum DC offset error |
15mV |
|
Maximum power consumption |
26W |
|
Weight |
About 0.5KG |
|
Recommended maximum input distance |
Up to 100 meters, at 1920x1200@60 (NEXANS CAT5e/6 dedicated wire is recommended) |
