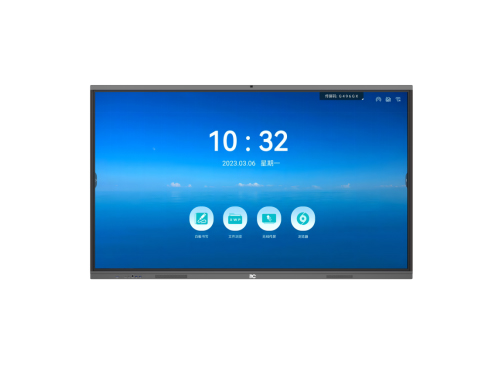

TV-110820 Intelligent interactive flat panel

The Details Related Solution Related Cases Related Video Download


Description:


* True 4K ultra-high-definition display, 85% high color gamut;

* Built-in intelligent core and operating system;

* The system can be equipped with plug-in PC modules as an option;

* Touch Technology:

(1) Anti-light interference (can be used normally even under direct sunlight);

(2) The touch algorithm is highly optimized, the response speed is fast, and the writing and presentation are smooth;

* Integrated display, touch control and intelligent core

(1) High-definition image processing engine;

(2) Smart display chip, smart Android operating system;

(3) Any channel can be used to write annotations;

* In standby mode, HDMI channel signal input intelligent wake-up

* Supports wireless screen transmission function;

* Supports WIFI 6, Bluetooth 5.0;

* HDMI supports 4K 60Hz;

* With channel memory function, the machine will enter the home page by default when powered on, and has the function of customizing channel naming;

* Android 11, 4K UI display, 4K whiteboard;

* Front USB port with channel switching, TYPE-C port;

* Support intelligent light sensing to adjust backlight


Specifications:


Display parameters

1. Size : 110 inches

2. Response time : 8 ms

3. Aspect Ratio : 16:9

4. Maximum display size : 2436.48 (H) × 1370.52 (V) mm

5. Resolution : 3840 (H) × 2160 (V)

6. Pixel pitch : 0.2115×0.6345 mm

7. Refresh rate : 120Hz

8. Color : 1.07B (10bit)

9. Color gamut NTSC (Typ) : 85%

10. Contrast ratio : (Typ, different OC contrast ratios vary, the actual contrast ratio shall prevail) 1200:1

11. Viewing Angle : 178°(H/V)

12. Backlight type : DLED

13. Screen brightness (Typ,) : ≥450cd/m2

14. Lifespan : ≥50,000 hours


Audio parameters


Channel

twenty one

Power

2x15W+1x20W

Touch writing system

The recognition principle is infrared recognition ; supported systems: Windows 10/Windows 8/Windows 7/Windows XP/Android/Linux/Mac OS X/Chrome

Touch points

20-point touch

Minimum identifiable object

3mm

Input method

Finger, stylus, or other opaque objects

Response time

15 ms

Touch accuracy

±1mm (more than 90% of the touch area)

Writing height

TYP 3.5mm

Communication

Full-Speed USB

Writing screen surface hardness

7H

Output coordinates

32767 (W) ×32767 (D)

Built-in system version

Android 11

CPU

Quad-Core A73*4+A53*4 Main frequency 2.2GHZ

GPU

Mali G52MP8

RAM

8GB

ROM

128GB

Wi-Fi

Version IEEE 802.11 ac/b/g/n/a/ax

Operating frequency

2.4GHz/5GHz

Working distance

12 meters

Rear side ports

TOUCH OUT 3.0 1 ; HDMI IN * 2 ; HDMI OUT * 1 ; TYPE C * 1 (full function) ; RJ45 OUT * 1 ; RJ45 IN * 1 ; USB 3.0 * 2

Rear lower port

LINE_OUT & HEADPHONE_OUT * 1 ; VGA IN * 1 ; AUDIO IN * 1 ; DP IN * 1 ; USB 2.0 * 1 ; TOUCH OUT 3.0 * 1 ; RS232 * 1 ; COAX OUT * 1

Front port

USB * 2 ; HDMI * 1 ; TOUCH * 1 ; TYPE-C * 1

Optional

NFC * 1

Power input

100-240V~50/60Hz

Maximum power consumption of the whole machine

750W

Standby power consumption

≤1W

PC system (optional)

PC Type Plug-in Intel Core Series Modular Computer

Configuring I5/I7/I9 (optional)

PC interface 80pin OPS-C standard

Overall dimensions (length x width x thickness)

2499.4×1500.7×170.8mm

External dimensions of packaging (length x thickness x height) with bracket

2670 x330×1880mm (error ±10mm)

Thickness of the whole machine + wall mount (the wall mount may be different, this size is different, the specific size is subject to the actual situation)

173mm (error ±3mm)

VESA hole specifications (length x width)

1000×800mm

Wall-mounted screw specifications

M8×25mm

Net weight

122±3KG

Gross weight (excluding OPS)

174±3KG

Operating temperature

0℃~40℃

Operating humidity

≤ 80%RH

Storage temperature

-10℃~60℃

Storage humidity

10%~80%RH

Altitude

Below 5000 meters
