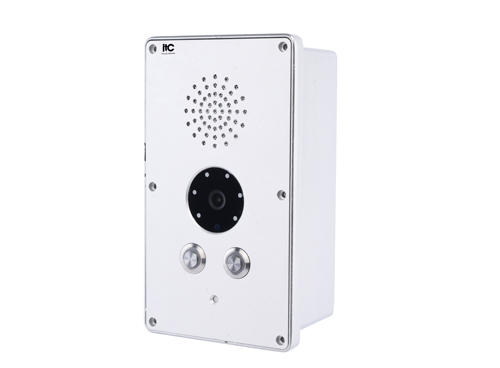

TH-3103MJ Access Controller

The Details Related Solution Related Cases Related Video Download


Description:


With a built-in camera, the access controller can realize calling and speaking to the nurse's station.It is suitable for installation at the entrance and exit of the ward.


Features:


* Adopt professional audio and video processing chip and embedded Linux operating system, stable and reliable; support 7*24 hours of uninterrupted working.

* Simple appearance, anti-removal screw design, high-strength alloy anti-oxidation panel

* Built-in 1 set of line audio output interface, realize external power amplifier, speaker and other equipment for sound reinforcement

* Support standard SIP communication protocol, and can conduct two-way intercom with VOIP phone.

* Encrypt the data in transmission to prevent others from eavesdropping and make calls more secure.

* Support real-time detection of the online status of the extension, which is convenient for debugging, repair and maintenance.

* Support one-button emergency call, and link the voice alarm evacuation system at the same time.

* Support the one-way visual intercom between the medical host and the access control, and can perform duplex intercom.


Specification:


Network interface

Standard RJ45 interface

Transmission rate

10/100Mbps

Communication protocol

TCP/IPUDPIGMPRTP

Audio format

ADPCMPCMMP3WAV

Audio protocol

G.711 a/u G.722AAC

Audio sampling rate

16kHz48kHz

Audio mode

16-bit CD quality

Built-in speaker impedance power

3W

MIC input sensitivity

10mV

Audio stream

16kbps256kbps

Audio interface

Built-in MIC, Line out

THD

0.5%

SNR

70dB

Video format

H.264

Video protocol

SIPRTMPHTTP

Video stream

128kbps2Mbps

Camera

Built-in 1080P

Relay

2 channels, control the switch of electric control locks, cameras and other equipment

GPIO interface

2 channels, support the feedback of door magnetic status, camera status, etc.

RS485 interface

1 channel, connected to multi-color door lights

Dimension (L× H × D )

98×175×78.8mm

Power supply

POE power supply

Working temperature

-20℃+80℃

Working humidity

10%90% relative humidity, no condensation

Weight

1kg
