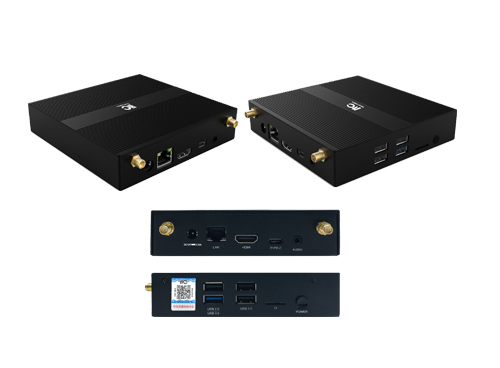

The information signage release terminal supports content release with a display by connecting to the medical intercom system. It can be applied to the lobby of various medical places, mainly to use the introduction of the ward, the style of the medical staff, duty information, contact information of each department, notification prompts, and emergency notices for publicity and important information announcement.
* Support multi-region data to be played in different scrolling forms.
* Support real-time synchronization of medical and nursing schedules, department contacts, nursing labels, ward slogans, emergency notifications and other information pushed by the background management system.
* Real-time synchronization of server time, which can display time, notifications, related prompt information, etc.
* Support display of ward announcement information, information about nurses or doctors on duty, hospital education information, etc.
* Support temporary emergency notification function.
* Support infrared remote control for long-distance configuration.
Operating system |
Android 7.1 |
CPU |
Dual-core Cortex-A72 + quad-core Cortex-A53 processor, up to 1.8GHz |
Memory |
4G |
Storage |
eMMC 32G |
WiFi/Bluetooth |
AP6356S 2×2 MIMO 802.11 ac/b/g/n WIFI+BT4.1 |
Device interface |
1×DC power input interface; 1×RJ45 Gigabit Ethernet port; 1×HDMI2.0 interface; 1×TYPE-C interface; 2×antennas; 1×3.5mm headphone jack; 1×USB3.0 interface, 3×USB2.0 interfaces, 1×TF card slot |
Power supply |
12V DC |
Watchdog |
Support |
Operating temperature |
0℃~45℃ |
Storage temperature |
-20℃~70℃ |
Humidity |
10%~95% (no condensation) |
Weight |
0.53kg |
Dimensions (W×D×H) |
125×126×31mm |
