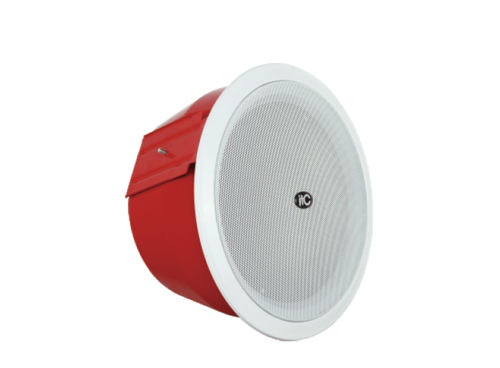

TF-OCO Fireproof Ceiling Speaker

The Details Related Solution Related Cases Related Video Download


Descriptions:


* 5''/6''/8'' fireproof version ceiling speaker.

* Economic range design for voice evacuation system.

* Ceramic connector, thermal use and fire-resistant cable.

* 5 power taps at 100V output.

* All metal material design with fire dome.

* Fast installation by spring clip.

* Excellent response for background music and voice message.

* With EN54-24 Certificate.

Model

TF-OCO

Power Taps @100V

6W, 3W, 1.5W, 0.75W, 0.38W

Power Taps @70V

3W, 1.5W, 0.75W, 0.38W, 0.19W

Impedance

Com/1390Ω/1980Ω/3410Ω/7080Ω/13230Ω

SPL

92dB

Frequency Response (-10dB)

80-20KHz

Finish

Baffle: Steel, White

Grille: Steel, White Cover: Steel, Red

Speaker Driver

6" x 1

Cutout Size

207mm

Dimension

230 x 148mm

Weight

1.6Kg
