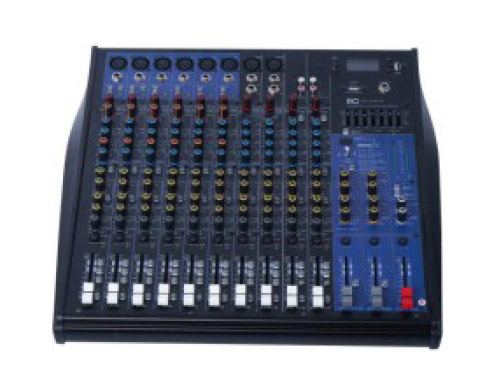

TS-14PFX-4-RL Mixer

The Details Related Solution Related Cases Related Video Download

Feature：

* Professional compact mixer, ultra-low noise discrete microphone preamplifier and +48V phantom power, powerful functions and mellifluous sound quality.

* 8 channels of Mic input interface are compatible with 6 line input interfaces; CH1-CH6 channel microphone input interface with 48V phantom power.

* 2 sets of stereo inputs and 4 channels of RCA inputs can be connected to stereo devices.

* Provide 1 set of main mixing breakpoint insertion, 6 breakpoint insertion, and can be connected to additional processors (compressor, equalizer, limiter, etc.).

* 13 high-precision carbon film faders with 60mm stroke.

* Built-in Bluetooth MP3 player, support 1-way USB interface, external U disk and Bluetooth connection to mobile phone to play music.

* Built-in USB sound card can connect to computer for music playback and sound recording.

* Built-in 24-bit DSP audio processor can provide 100 preset effects.

* A USB power supply interface can be connected to USB light.

* Support 7-band graphic equalization fader adjustment.

* Digital U-band transmission technology, pi/4-DQPSK modulation, using domestic main control chip, transmission distance ≥80 meters, the receiver has ≥2 balanced outputs, ≥1 unbalanced mixing output; with reverberation, equalization, intelligent mute, audio encryption, power adjustment functions.

* There are ≥1 receiving host and ≥2 handheld transmitters; the frequency range is equal to or better than the four frequency bands of 470MHz-510MHz, 540MHz-590MHz, 640MHz-690MHz, and 807MHz-830MHz.

* Automatic mute function

* Multi-level reverberation adjustment function, with ≥15625 reverberation effects

* Multi-band EQ adjustment function, with ≥2197 EQ adjustments

* Battery life continuous use ≥10 hours

* Anti-crosstalk function with a unique 32-bit identification code Display screens on both receiver and transmitter

* Frequency response: 20 Hz ~ 20 kHz (±3 dB)

* Signal-to-noise ratio: ≥105 dB (XLR)

Specification：

Model	TS-14PFX-4-RL
Mic input	8 channels (8 XLR interfaces)
Line input	6-channel single plug mono/stereo automatic switching hybrid interface
Stereo input channel	2 sets (4 channels of mono), 4 channels of RCA input
Output channel	2 sets of stereo main output, 4 group outputs, 4 auxiliary outputs, 1 set of stereo monitoring output, 1 earphone monitoring output, 2 effect outputs.
INSERT	1 set of main mix breakpoint insertion, 6 breakpoint insertion
Wireless connection	Playback and recording with a USB disk
USB interface Audio processor	Built-in Bluetooth wireless transceiver, can be connected to a mobile phone to play music 24-bit DSP audio processor(including vocal, small house, hall, echo, echo + reverb, plate, vocal music board, chorus GTR, rotating GTR, vibrato GTR type), 100 preset effects
USB sound card port	Support computer recording/playback, playback through CH11/12 channel
Phantom power	Each channel of CH1-CH6 has 48V phantom switch independent control
Frequency response	20Hz-20kHz，±2dB
Distortion	<0.03% at+0dB,22Hz-22KHz A-weighted
Sensitivity	+20dB~-30dB
SNR	<-100dBr A-weighted
Mono equalization	High frequency: +/-15dB @12KHz; medium frequency: +/-15dB @100KHz-8KHz; low frequency: +/-15dB @80KHz
Stereo equalization	High frequency: +/-15dB @12KHz; medium frequency: +/-15dB @3KHz or +/-15dB @500KHz; low frequency: +/-15dB @80KHz
Main mixing crosstalk	<-80dB @0dB 20Hz-22KHz A-weighted, main output: 0dB, other channels: minimum
Supply voltage	AC 100-240V 50/60Hz
Rated power	30W
Dimension	438×431×81mm
Weight 6.7Kg
