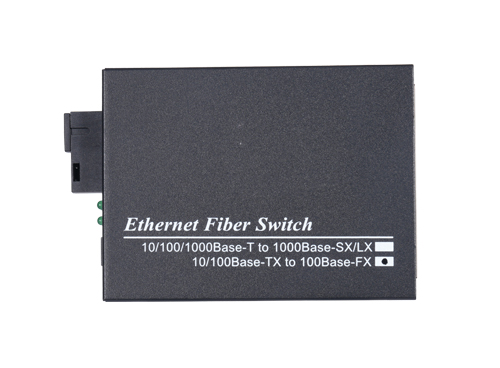

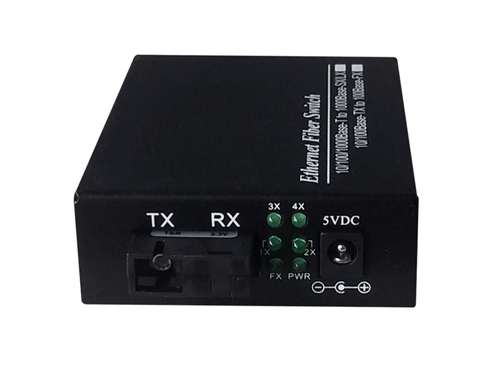

This device has four 10/100Mbps Ethernet ports and one 155Mbps fiber port, which can extend the network transmission distance from 100m to 20km via copper cable; it also has many advantages such as isolation protection, good data security, working stability and easy maintenance.
* Support switching between 100Base-FX and 10/100Base-TX;
* Equipped with 1 155Mbps full-duplex fiber port and 4 10/100M adaptive Ethernet ports;
* Support 10/100M rate, MDI/MDIX and half/full duplex;
* Each port has full LED indicators;
* Support IEEE802.1d spanning tree;
* Each port supports high-performance QoS function;
* Support broadcast storm protection;
* Support 4.5V-20V wide voltage input;
* Supports forwarding data packets up to 1552 bytes in length;
* Low power consumption chip with built-in heat sink ensures efficient operation for a long time.
|
Standard |
IEEE802.310Base-T,IEEE802.3u100Base-TX/FX,IEEE802.3xFlowcontrol,IEEE802.1pQoS , IEEE802.1dSpanningTree , IEEE802.1qVLAN |
|
Certification |
CCC,CE,FCC,RoHS |
|
Ethernet port |
|
|
Connector |
RJ45 |
|
Data rate |
10/100M |
|
Distance |
100m |
|
UTP type |
UTP-5E or higher |
|
Fiber optic port |
|
|
Connector |
SC slot |
|
Data transfer rate |
155Mbps |
|
Light wavelength |
T x 1550nm , R x 1310nm |
|
Distance |
20km |
|
Performance |
|
|
Processing type |
Store and Forward |
|
MAC table size |
1K |
|
Buffer space |
448bit |
|
Back bandwidth |
1G |
|
Maximum packet length |
1552bytes |
|
Time delay |
＜150μs |
|
Power supply |
|
|
Input voltage AC |
100V~240V50/60Hz |
|
Connector |
DC socket |
|
Operating voltage |
5V |
|
Power consumption |
0.7W～2.0W |
|
Environment |
|
|
Storage temperature |
-40～70℃ |
|
Operating temperature |
-10～55℃ |
|
Relative humidity |
5-95% (no condensation) |
|
Physical characteristics |
|
|
Dimensions (L x W x H) |
94×71×26mm |
|
Weight |
0.15kg |
|
Color |
Metal, black |
