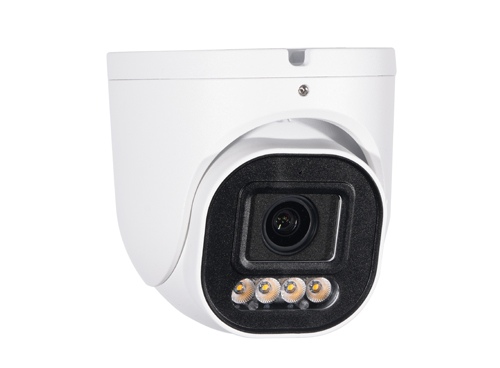

This product is a 4MP HD network camera featuring a high-performance, low-light CMOS sensor and support for H.265/H.264 encoding, providing high-definition video surveillance. It features daylight fill and nightlight fill at distances up to 20 meters, along with support for human/vehicle detection, cross-border detection, zone intrusion detection, digital wide dynamic range, and privacy masking, ensuring clear imaging in complex environments. It is widely used in indoor and outdoor security monitoring locations such as residential areas, factories, schools, and shopping malls, providing a 24/7 intelligent security solution.
* Using 1/1.8" low-light CMOS sensor, the image is clear and delicate.
* 4MP; maximum 2560×1440@30fps.
* Automatic electronic shutter, adaptable to different monitoring environments.
* Brightness, contrast, saturation and sharpness are adjustable.
* DWDR, 2D/3D NR, AWB/Manual white balance.
* Support flip/mirror.
* Built-in microphone and speaker.
* H.265/H.264 video encoding.
* Support pedestrian/vehicle type detection, cross-border detection, and area intrusion detection.
* Support information overlay (such as title, time, date information, etc.).
* Support privacy shielding, up to 4 areas.
* Support Onvif and GB28181-2016 protocols.
* Support POE power supply; IP66 protection level.
* Alarm I/O: 1-channel input, 1-channel output.
|
Sensor type |
1/1.8" CMOS |
|
Sensor type |
4MP; maximum 2560×1440@30fps |
|
Minimum illumination |
Color: 0.01 Lux @(F1.2,AGC ON); 0 Lux fill light on |
|
Shutter |
1/3 second to 1/10,0000 second |
|
Lens type |
fixed-focus lens |
|
Day and night mode |
Passive method |
|
Wide dynamic range |
Digital wide dynamic range |
|
Lens aperture |
F1.0 |
|
Focal length & field of view |
|
|
Lens focal length |
Lens focal length: 4mm, lens horizontal angle of view: 94°, lens vertical angle of view: 48°, lens focus angle of view: 113° |
|
Maximum image size |
Main stream: 2880×1620, 2560×1440, 1920×1080; Sub stream: 704×576, 640×480, 352×288 |
|
Image frame rate |
PAL/NTSC:2560 ×1440@25fps; 2560×1440@30fps |
|
Image settings |
Saturation, brightness, sharpness and contrast are adjustable |
|
Image mode |
Normal mode |
|
Audio input |
Built-in microphone |
|
Audio output |
Built-in speakers |
|
Audio sampling frequency/bit width |
8KHz/16bit |
|
Compression standards |
H.265/H.264 video coding compression |
|
Compression output bit rate |
0.32Mbps~6.144k Mbps |
|
Audio compression standards |
G.711U/G.711A |
|
Storage function |
Network storage, NVR |
|
Compatible protocols |
Supports HTTP, FTP, TCP/IP, IPv4, DHCP, NTP, RTSP, QOS and other network protocols; supports ONVIF Profile SG standard protocol, realizes docking with mainstream brand NVR back-end private protocol, supports GB\T28181 national standard protocol |
|
Event |
Motion Detection |
|
Smart events |
Support pedestrian crossing detection and area intrusion detection; support vehicle crossing detection and area intrusion detection |
|
Communication interface |
1 10/100Mbps RJ45 network port |
|
Power interface |
5.5mm×2.5mm standard input |
|
Alarm |
1 input, 1 output |
|
Operating temperature |
-20℃-＋50℃ |
|
Operating humidity |
10%-90% RH |
|
Power supply |
DC12V ±20%/PoE (802.3af) |
|
Fill light |
4 white LEDs, 20M distance |
|
Power consumption |
6W |
|
Material |
Metal |
|
Product size |
Φ93×91.5 (mm) |
|
Weight |
0.5Kg |
