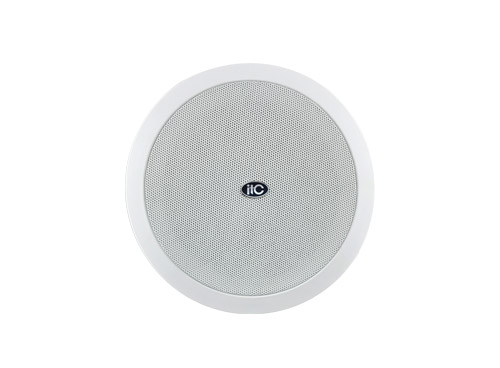

T-208CW Ceiling Speaker

The Details Related Solution Related Cases Related Video Download



Features:


Indoor high fidelity ceiling speaker, fully enclosed structure, iron flame retardant unit to protect the back cover, multiple power constant pressure and constant resistance selection. Fix the presser foot system with screws. Applicable to hotels, clubs, shopping malls etc.


For acoustic simulation in AFMG EASE / EASE Evac, the T-208CW shares its acoustic data with the ITC T-208M. Please use the T-208M GLL file for T-208CW designs. Both models have the same coaxial driver, sensitivity and coverage angle, so simulation results with the T-208M GLL are representative of T-208CW performance.


Model

T-208CW

Power taps(100V)

5W, 10W, 20W, 40W

Power taps(70V)

2.5W, 5W, 10W, 20W, 40W

Impedance

2KΩ/1KΩ/500Ω/250Ω/125Ω

Input

70V/100V/8Ω

SPL(1W/1M)

90dB±3dB

Frequency response(-10dB)

80Hz -20KHz

Speaker driver

8"×1     1.5"×1

Cutout size

245mm

Dimensions

280×195mm

Weight

2.5Kg
