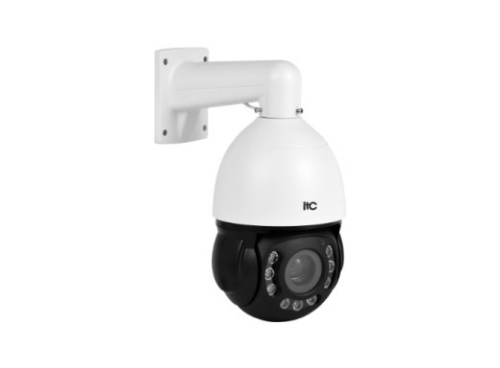

This product is a 4MP 23x optical zoom dual-light source network high-definition ball camera, integrated with a high-performance low-light CMOS sensor, supports H.265+/H.264 encoding, and provides high-definition video surveillance. It has infrared + white light dual light source illumination, and can reach up to 120 meters at night. It supports functions such as human automatic tracking, license plate mode , digital wide dynamic, and privacy shielding to ensure clear imaging in complex environments. It is suitable for road monitoring, warehouses, underground parking lots, parks, bars and other places with low or no lighting environments and high-definition image quality , providing all- weather intelligent security solutions.
*Adopting 4MP 1/2.7" low-light CMOS sensor, the image is clear and delicate.
*ICR automatic, timed, external, manual switching modes.
*Automatic electronic shutter, adaptable to different monitoring environments.
*Supports cloud storage.
*Supports adjustable brightness, contrast, saturation and sharpness.
*Supports backlight compensation, strong light suppression, and license plate mode.
*Supports normal image mode and anti-face overexposure mode.
*Supports digital wide dynamic, 2D/3D noise reduction, and automatic and manual white balance.
*Supports horizontal/vertical image mirroring.
*The horizontal rotation range is 0°-360°, and the vertical rotation range is -0°-90°.
*Horizontal manual control speed: 0.1°~80°/s; vertical manual control speed 0.1°~80°/s.
*Supports 128 preset position storage.
*23x optical zoom, 20x autofocus lens, 4.8~110mm focal length continuous zoom lens.
*H.265+/H.265/H.264 video compression technology, high image quality, low bit rate.
*Supports mobile phone remote monitoring (iOS, Android).
*Multi-browser access (IE, Chrome, Firefox, Safari).
*Supports information overlay (such as title, resolution, bitrate, time, date information, etc., and the title content can be separated into multiple lines).
*Supports privacy masking and can be divided into up to 4 areas.
*Supports CMS, IPCTools, Videolink and cloud services.
*Supports docking with XVR/NVR/platform.
*Support standard Onvif and GB-T/28181 protocols.
*Supports access to RTSP encryption and Onvif encryption.
*Optional GB/T28181-2016 protocol, Ftp upload, RTMP streaming.
|
Sensor type |
1/ 2.7 ＂low illumination CMOS |
|
Sensor type |
4MP 1/2.7" low-light CMOS sensor |
|
Minimum illumination |
Color: 0.05Lux@(F1.2, AGC ON); Black and white: 0.01Lux@(F1.2, AGC ON), 0 Lux with IR |
|
Shutter |
1/50(1/60) sec to 1/10,000 sec |
|
Lenses type |
Integrated continuous zoom lens |
|
Day and night mode |
Support IR-CUT |
|
Wide dynamic range |
≤120dB |
|
Lens focal length |
4.8～110mm, 23x optical zoom |
|
Lens aperture |
F1.8～3.9 |
|
Horizontal angle of view |
55.4°～3.55°(wide angle-telephoto) |
|
Vertical viewing angle of the lens |
31.6°～2°(wide angle-telephoto) |
|
Lens focus angle |
62.2°～4.05°(wide angle-telephoto) |
|
Close shooting distance |
100-1000mm (wide angle-telephoto) |
|
Lens zoom speed |
About 3 seconds (optical, wide-angle-telephoto) |
|
Image maximum image size |
Main stream: 2560×1440@25fps; 2304×1296 30@FPS |
|
Image frame rate |
PAL:2560×1440@20fps; NTSC:2560×1440@20fps |
|
Image settings |
Saturation, brightness, and contrast are adjustable through the client or browser |
|
Image mode |
Normal mode, anti-face overexposure mode, license plate mode |
|
Audio input |
Built-in -33dB microphone (optional line input) |
|
Audio output |
Built-in 4Ω3W speaker (optional linear input) |
|
Audio sampling frequency/bit width |
8KHz/16bit |
|
Compression standards |
H.265/H.264 video coding compression |
|
Compression output bit rate |
0.512Mbps~3.52Mbps |
|
Audio compression standards |
G.711/G.711A/AAC |
|
Storage function |
Network storage, cloud storage, NVR, NAS |
|
Intelligent alarm |
Motion detection, video loss, network disconnection, IP address conflict |
|
Supported agreement |
TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP, (HTTPS, SIP, 802.1x, IPv6 optional) |
|
General functions |
Anti-flicker, dual stream, heartbeat, password protection |
|
PTZ horizontal speed |
Horizontal keying speed: 0.1°-80°/s, speed can be set; horizontal rotation range 0°-360° |
|
PTZ vertical speed |
Vertical keying speed: 0.1°-80°/s, speed can be set; vertical rotation range 0°-90° |
|
Number of PTZ preset positions |
128 preset positions, (App 6 pictures storage title preset |
|
Automatic cruise control |
1 automatic cruise, 16 preset positions can be set |
|
Pattern scanning |
Turn on/off pattern scanning, the longest setting is 180S |
|
Guardian position |
Open/close guard position |
|
Humanoid tracking |
Humanoid automatic tracking mode |
|
Area scan |
Automatic scanning; left and right boundary scanning can be set |
|
Communication interface |
110/100Mbps RJ45 port |
|
Power interface |
5.5mm×2.5mm standard DC interface Input |
|
Operating temperature |
-30℃~＋65℃ |
|
Operating humidity |
10%-90% RH |
|
Power supply |
DC12V±5%/POE 48V (IEEE802.3at) |
|
Lightning protection |
TVS 6KV |
|
Infrared distance |
4 850nm infrared lights; 2 laser lights 120 meters |
|
White light distance |
3 4300K warm light lamps 50 meters |
|
Power consumption |
MAX 18W |
|
Material |
Aluminum alloy + ABS engineering plastics |
|
Net weight |
About 0.77Kg (without POE adapter) / About 0.83Kg (with POE adapter) |
|
Product size |
Ø177mm×340mm |
