Description:

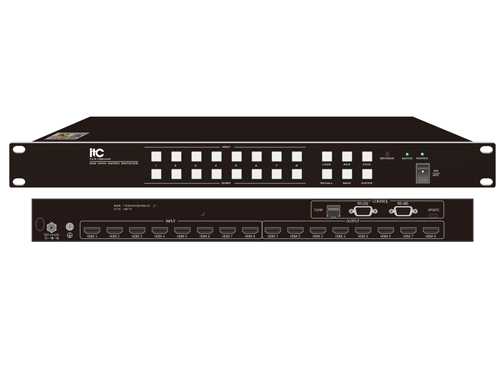

The device is a professional 4K high-definition fixed seamless switching matrix that supports multiple HDMI inputs and multiple HDMI outputs ; the input and output support HDMI1.4 , and the output resolution can reach 3840 × 2160 @ 30Hz ; the device control methods are flexible and diverse , including two-way serial port control, panel button control, etc .; and it has intelligent EDID management to ensure compatibility with signal sources and operations in various application scenarios . It is suitable for multimedia conference rooms, lecture halls, multi- function halls, performance halls, electronic classrooms, exhibitions, command centers and other places.

Features:

* The device has 8-channel HDMI input interfaces, 8-channel HDMI output interfaces, and supports seamless and fast switching ;

* The input and output interfaces support the HDMI1.4 standard , with a resolution of up to 3840 × 2160@30Hz ; the color space supports RGB4:4:4 , YCbCr4:4:4 , YCbCr4:2:2 ;

* The input is compatible with DVI or HDMI signals ; the output signal format supports HDMI or DVI ;

* Input has 7 built-in EDIDs , 1920 × 1080@60Hz dual-channel (default) , supports custom EDID ;

* Support power-off memory function ; support standby and low power consumption standby ;

* Support continuous hot plugging of HDMI interface ;

* Support two-way serial port control and panel button control ;

* 1U height 19-inch standard cabinet installation chassis .

Specifications:
